Dinghy Davits

May 2008 Dinghy-Stowage Solution Article

Davits Project Costs and Tools List
by Paul Ring

This is a supplement to the article printed in Good Old Boat magazine, May 2008.

Project costs

The costs of this project are the actual amounts I incurred, or are from catalogs and other price lists, or are estimates. I have indicated each case. Taxes are not included

35.85
Ash lumber, 5.2 board feet @ $4.12, Woodcraft Inc., actual
$21.42
Mahogany, 2 board feet @ $6.00, estimate
12.00
1/4-inch luan plywood, 2 square feet, estimate
4.00
Rail clamps, 2 pair @ $14.95 + $5.95 shipping, Heml Products, Inc.
Micro blocks, 2 @ $8.29, West Marine, actual
16.58
Carabiners, 2-inch without eye, 2 @ $7.79, West Marine, actual
15.58
Cleats, Nylon, 2 inch, 2 @ $1.09, West Marine, actual
2.18
Double pulley, 1 ea., Ace Hardware, actual
5.40
Rope, 1/4-inch nylon, 35 feet @ $.39, West Marine, actual
13.65
Epoxy, quart w/ hardener, West Marine, catalog
45.98
Colloidal Silica, 1.7 oz., West Marine, catalog
7.99
Foam roller covers, 2-pack, West Marine, catalog
3.99
Miscellaneous supplies, sandpaper, varnish, etc., estimate
25.00
TOTAL
$197.64

Back to Top

Tools list

This tool list includes the tools necessary for this project, along with those that are nice to have, and are so identified. Ordinary hand tools such as a hammer, screwdrivers, squares, etc. are not listed.

Table saw - Necessary
Band saw - Not essential, but very useful
Thickness planer - Only needed if your table saw didn't do a good job ripping the ash boards to laminating size
Electric hand planer - If you don't have one, borrow one, or very carefully sharpen your hand plane
Router - Needed to put a 1/4-inch round over on the davit edges, or the edges could be rounded slightly with sandpaper by hand

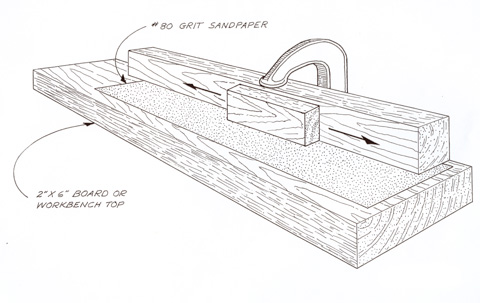

Power disc sander - Not essential, as a substitute, a jig for accurate hand sanding could be made, as shown in the illustration below
Electric drill - Surely you have one
Drill press - Not essential. As a substitute, a dowelling jig can be used with an electric drill
Sharp chisels - Two, one 1/2-inch and one 1/4-inch
