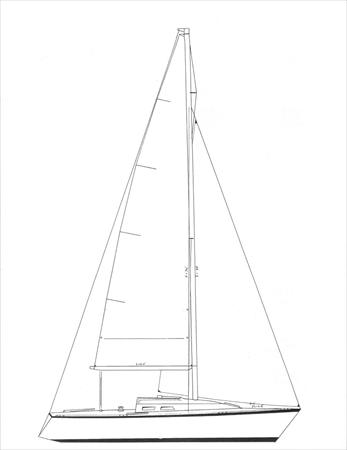

Hawkfarm 28 (fractional rig)
Description
The Hawkfarm 28 (fractional rig) is a classic performance-oriented racer/cruiser designed by Tom Wylie (a respected San Francisco Bay Area naval architect known for fast, light boats like the Wyliecat series and various IOR/IMS designs). Introduced in the late 1970s (around 1977–1978), it was built in limited numbers (approximately 32 hulls total across variants) primarily in fiberglass by small yards or custom builders, often associated with the San Francisco Bay racing scene (e.g., Singlehanded Sailing Society events). The fractional sloop rig (with the forestay attaching below the masthead) provides better upwind efficiency, easier mainsail depowering in puffs, and a smaller headsail for tacking—making it lively and responsive in breeze while being tender initially but rewarding when powered up. It's a fin keel with spade rudder setup for agile handling and good speed potential (light displacement for its era), suitable for club racing, coastal daysailing.
Construction Details
| Designer | Tom Wylie |
|---|---|
| Length | 28.000 ft |
| LOA | 28.000 ft |
| LWL | 23.500 ft |
| Beam | 8.170 ft |
| Displacement | 5700 lb |
| Max Draft | 5.500 ft |
| Year Built | 1977 |
The standard boat dimensions
| i | 33 ft |
|---|---|
| j | 11 ft |
| p | 36 ft |
| e | 10.50 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 33 ft | 11 ft | 36 ft | 10.50 ft | - | - | - | - |
Sails
Hawkfarm 28 (fractional rig) - MAINSAIL
| Luff | * 36 ft - (10973 mm) |
|---|---|
| Foot | * 10.5 ft - (3200 mm) |
| Leech | * 36.95 ft - (11262 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 37.15 ft - (11323 mm) |
| Head (inches) | * 4.5 in - (114 mm) |
| Area | * 194.77 ft² |
| Edit in Calculator |
Hawkfarm 28 (fractional rig) - JIBSAIL
| Luff | * 27.83 ft - (8483 mm) |
|---|---|
| Foot | * 14.67 ft - (4471 mm) |
| Leech | * 24 ft - (7315 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 12.65 ft - (3856 mm) |
| Deck Angle | * 12.01 ° |
| Area | * 175.99 ft² |
| Edit in Calculator |
Hawkfarm 28 (fractional rig) - GENOA
| Luff | * 33.05 ft - (10074 mm) |
|---|---|
| Foot | * 17.85 ft - (5441 mm) |
| Leech | * 31 ft - (9449 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 16.5 ft - (5029 mm) |
| Deck Angle | * 3.98 ° |
| Area | * 272.68 ft² |
| Edit in Calculator |
Hawkfarm 28 (fractional rig) - SPINNAKER
| Stays | * 33.05 ft - (10074 mm) |
|---|---|
| MidGirth | * 19.8 ft - (6035 mm) |
| Foot | * 19.8 ft - (6035 mm) |
| Perc LP | * 180 % |
| Area | * 556 ft² |
| Edit in Calculator |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
