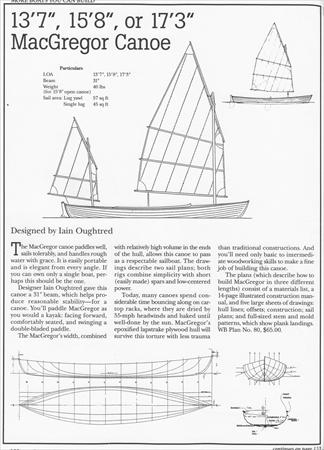

Macgregor Canoe 17' 3"
Description
The MacGregor Canoe at 17' 3" (the longest variant in Iain Oughtred's series) scales up from the base plans (originally 13' 7") by adjusting mold spacing and stem profiles. This version offers more carrying capacity, stability under sail, and room for two people paddling/sailing comfortably while retaining the elegant, double-paddle-capable decked canoe lines. Oughtred's plans provide hull offsets/patterns, but sail dimensions are proportional and flexible (builder/sailmaker choice). The rig is typically a balanced lug yawl (main + small mizzen) or single lug (cat rig) for simplicity, low stress, and easy raising/lowering when switching to paddle. No traditional I/J/P/E measurements exist (unstayed lug/gunter rig without fixed foretriangle).
Construction Details
| Designer | Iain Oughtred |
|---|---|
| Builder | Home Built |
| Length | 17.250 ft |
| LOA | 17.250 ft |
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| - | - | - | - | - | - | - | - |
Sails
Macgregor Canoe 17' 3" - STANDING LUGSAIL
| Luff | 2.33 ft - (710 mm) |
|---|---|
| Foot | 3.625 ft - (1105 mm) |
| Leech | 5.58 ft - (1701 mm) |
| Tack Angle | * 78.42 ° |
| Diag (clew/throat) | 3.896 ft - (1188 mm) |
| Head | 3.83 ft - (1167 mm) |
| Area | * 11.59 ft² |
| Edit in Calculator |
Macgregor Canoe 17' 3" - STANDING LUGSAIL
| Luff | 4.167 ft - (1270 mm) |
|---|---|
| Foot | 7 ft - (2134 mm) |
| Leech | 11.67 ft - (3557 mm) |
| Tack Angle | * 81.22 ° |
| Diag (clew/throat) | 7.58 ft - (2310 mm) |
| Head | 7.75 ft - (2362 mm) |
| Area | * 43.41 ft² |
| Edit in Calculator |
Macgregor Canoe 17' 3" - STANDING LUGSAIL
| Luff | 4 ft - (1219 mm) |
|---|---|
| Foot | 6.5 ft - (1981 mm) |
| Leech | 11.25 ft - (3429 mm) |
| Tack Angle | * 83.4 ° |
| Diag (clew/throat) | 7.23 ft - (2204 mm) |
| Head | 7.42 ft - (2262 mm) |
| Area | * 39.3 ft² |
| Edit in Calculator |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
