Maine Peapod
Description
The Maine Peapod by Arch Davis is a 12-foot traditional-style peapod designed specifically for amateur builders. It's a modern take on the classic Maine peapod (a double-ended, flared-side rowing boat with origins in 19th-century coastal workboats), optimized for good looks, simple and lightweight construction, respectable performance under oars, and the option to add a sailing rig (lug or spritsail). Arch Davis (of Arch Davis Design in Belfast, Maine) created it to be easy to build using plywood and epoxy, with excellent rowing characteristics and a charming appearance. This design is popular among homebuilders for its forgiving nature, stability in chop, and versatility—great for rowing on lakes/ponds, as a tender, or light sailing in protected waters. Many builders add a small lug sail for fun, though it's primarily a rowing boat.
Construction Details
| Designer | Arch Davis |
|---|---|
| Builder | Home Built |
| Length | 12.000 ft |
| Beam | 4.000 ft |
| Displacement | 200 lb |
| Max Draft | 3.000 ft |
| Min Draft | 0.500 ft |
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| - | - | - | - | - | - | - | - |
Documents
Sails

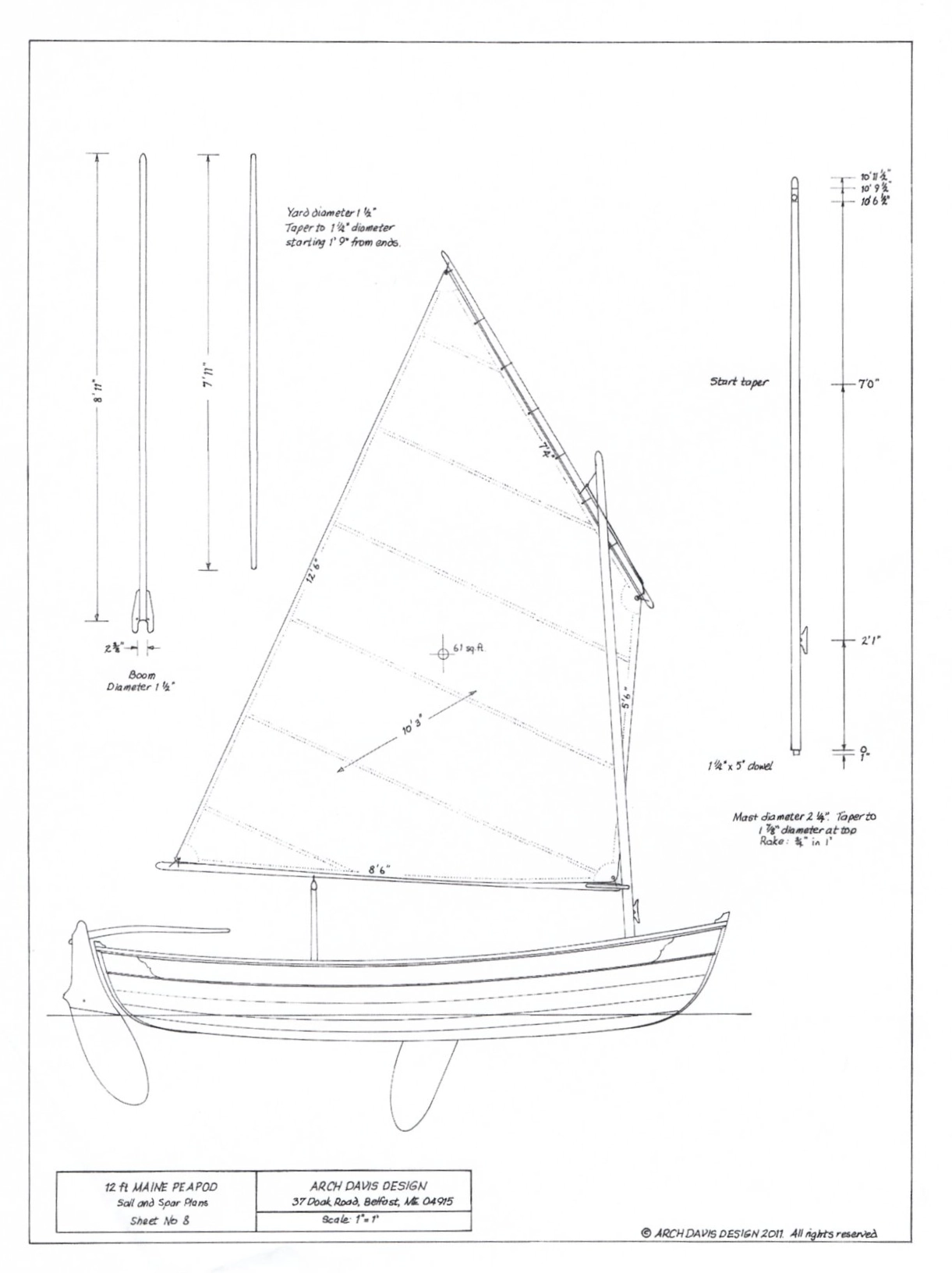

Maine Peapod - STANDING LUGSAIL
| Luff | 5.5 ft - (1676 mm) |
|---|---|
| Foot | 8.5 ft - (2591 mm) |
| Leech | 12.5 ft - (3810 mm) |
| Tack Angle | * 91.57 ° |
| Diag (clew/throat) | 10.25 ft - (3124 mm) |
| Head | 7.33 ft - (2234 mm) |
| Area | * 60.93 ft² |
| Edit in Calculator |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
