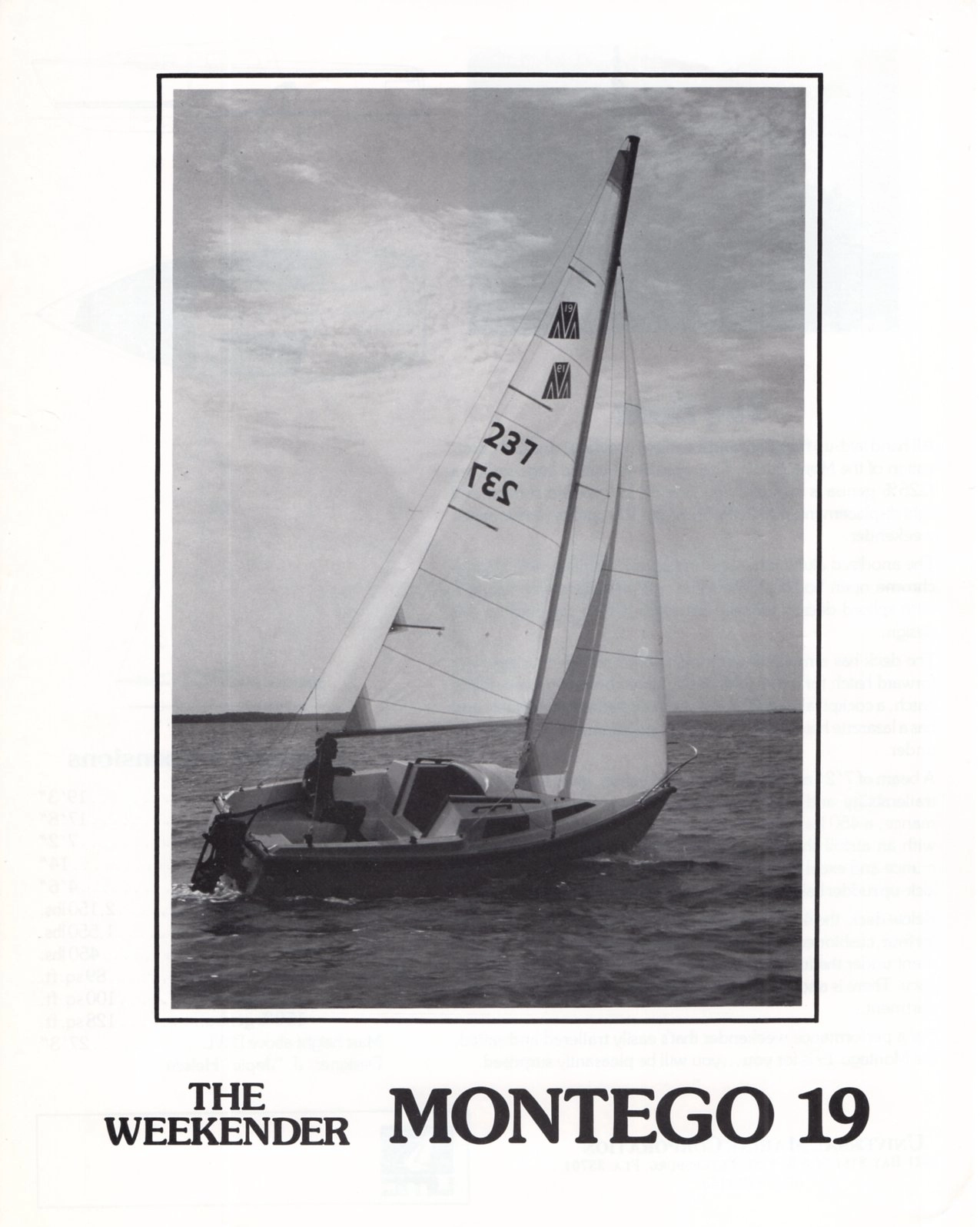

Montego 19
Description
The Montego 19 is a compact, trailerable pocket cruiser designed by Dutch-American naval architect Johannes "Jopie" Helsen and built in fiberglass by Universal Marine Corp. (USA) from 1976 to 1985. It features a swing keel for shallow draft versatility (1.20 ft up for beaching/trailering, 4.50 ft down for sailing stability), a fractional sloop rig for responsive handling, and a basic interior suitable for short overnights or daysailing—known for its light weight, affordability, and forgiving nature as an entry-level boat.
Construction Details
| Designer | Johannes "Jopie" Helsen |
|---|---|
| Builder | Universal Marine Corp. (USA) |
| Length | 19.000 ft |
| LOA | 19.500 ft |
| LWL | 17.750 ft |
| Beam | 7.170 ft |
| Displacement | 1550 lb |
| Ballast | 450 lb |
| Max Draft | 4.500 ft |
| Min Draft | 1.200 ft |
| Year Built | 1976 |
The standard boat dimensions
| i | 21 ft |
|---|---|
| j | 7.37 ft |
| p | 21 ft |
| e | 8.50 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 21 ft | 7.37 ft | 21 ft | 8.50 ft | - | - | - | - |
Documents
Sails
Montego 19 - MAINSAIL
| Luff | * 21 ft - (6401 mm) |
|---|---|
| Foot | * 8.5 ft - (2591 mm) |
| Leech | * 22.19 ft - (6764 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 22.38 ft - (6821 mm) |
| Head (inches) | * 4 in - (102 mm) |
| Area | * 92.25 ft² |
| Edit in Calculator |
Montego 19 - JIBSAIL
| Luff | 18.5 ft - (5639 mm) |
|---|---|
| Foot | 8.42 ft - (2566 mm) |
| Leech | 16.25 ft - (4953 mm) |
| Percentage LP | * 100.27 % |
| Length Perpendicular | * 7.39 ft - (2252 mm) |
| Deck Angle | * 9.25 ° |
| Area | * 68.39 ft² |
| Edit in Calculator |
Montego 19 - GENOA
| Luff | * 21.14 ft - (6443 mm) |
|---|---|
| Foot | * 12.04 ft - (3670 mm) |
| Leech | * 19.74 ft - (6017 mm) |
| Percentage LP | * 149.93 % |
| Length Perpendicular | * 11.05 ft - (3368 mm) |
| Deck Angle | * 4.06 ° |
| Area | * 116.79 ft² |
| Edit in Calculator |
Montego 19 - ASYMMETRICAL
| Luff | 22 ft - (6706 mm) |
|---|---|
| Foot | 12.75 ft - (3886 mm) |
| Leech | 20 ft - (6096 mm) |
| Perc LP | * 165 % |
| Area | * 210 ft² |
| Edit in Calculator |
Montego 19 - STORMJIB
| Luff | 13 ft - (3962 mm) |
|---|---|
| Foot | 5.25 ft - (1600 mm) |
| Leech | 10 ft - (3048 mm) |
| Perc LP | * 50.34 % |
| Length Perp | * 3.71 ft - (1131 mm) |
| Deck Angle | * 25.69 ° |
| Area | * 24.12 ft² |
| Edit in Calculator |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
