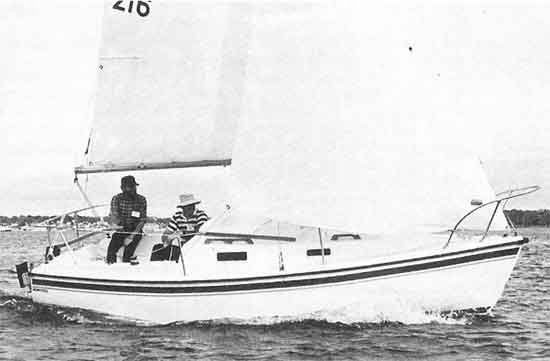

Montego 20
Description
The Montego 20 (also known as the Montego 20 or sometimes grouped with the Montego 19 in records) is a compact, trailerable pocket cruiser designed by Dutch American naval architect Johannes "Jopie" Helsen and built in fiberglass by Universal Marine Corp. (USA) from 1976 to 1985. It shares the same hull as the Montego 19 but with a fixed shoal-draft keel (vs. swing keel on the 19), featuring a fractional sloop rig for responsive handling, a spacious cockpit for its size, and a small cuddy cabin for basic overnights or storage—known for its light weight, affordability, forgiving nature, and good light-air performance as an entry-level family daysailer or short coastal cruiser.
Construction Details
| Designer | Johannes "Jopie" Helsen |
|---|---|
| Builder | Universal Marine Corp. (USA) |
| Length | 20.000 ft |
| LOA | 19.500 ft |
| LWL | 17.750 ft |
| Beam | 7.170 ft |
| Displacement | 1700 lb |
| Ballast | 600 lb |
| Max Draft | 2.000 ft |
| Year Built | 1976 |
The standard boat dimensions
| i | 21 ft |
|---|---|
| j | 7.37 ft |
| p | 21 ft |
| e | 8.50 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 21 ft | 7.37 ft | 21 ft | 8.50 ft | - | - | - | - |
Documents
Sails
Montego 20 - MAINSAIL
| Luff | * 21 ft - (6401 mm) |
|---|---|
| Foot | * 8.5 ft - (2591 mm) |
| Leech | * 22.25 ft - (6782 mm) |
| Tack Angle | * 87.94 ° |
| Diagonal | * 22.37 ft - (6818 mm) |
| Head (inches) | * 4 in - (102 mm) |
| Area | 89.13 ft² |
| Edit in Calculator |
Montego 20 - JIBSAIL
| Luff | * 17.8 ft - (5425 mm) |
|---|---|
| Foot | * 9.92 ft - (3024 mm) |
| Leech | * 15.22 ft - (4639 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 8.48 ft - (2585 mm) |
| Deck Angle | * 12 ° |
| Area | 75.42 ft² |
| Edit in Calculator |
Montego 20 - GENOA
| Luff | * 21.14 ft - (6443 mm) |
|---|---|
| Foot | * 12.04 ft - (3670 mm) |
| Leech | * 19.75 ft - (6020 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 11.06 ft - (3371 mm) |
| Deck Angle | * 4 ° |
| Area | 116.84 ft² |
| Edit in Calculator |
Montego 20 - SPINNAKER
| Stays | * 21.14 ft - (6443 mm) |
|---|---|
| MidGirth | * 13.27 ft - (4045 mm) |
| Foot | * 13.27 ft - (4045 mm) |
| Perc LP | * 180 % |
| Area | 238.45 ft² |
| Edit in Calculator |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
