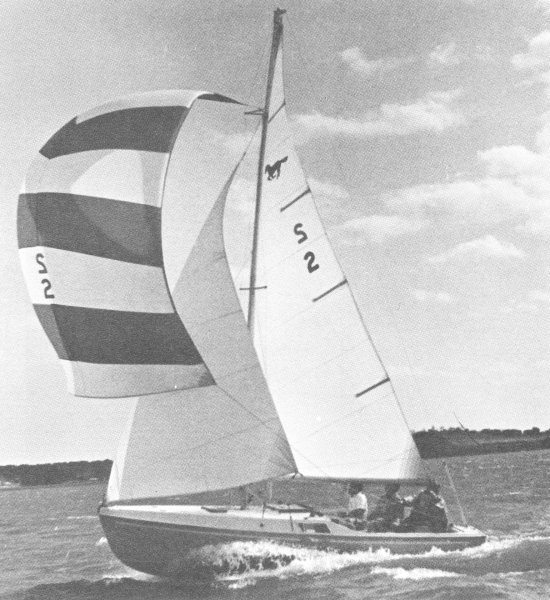

Mustang 22 (Plas-Trend 22)
Description
The Mustang 22 (also known as the Plas-Trend 22, PT-22, or Mustang 22) is a compact, trailerable American sailboat designed by Martin Bludworth (a Texas-based sailmaker, designer, and avid racer) as a Midget Ocean Racing Club (MORC) racer and daysailer/racer. First built in 1969 by Plas-Trend Corporation (Ft. Worth, Texas; later Composite Technologies/Island Yacht Corp), production ran through the early 1970s with only about 40 hulls made—making it a rare, cult-classic fiberglass boat today. It features an unusual bulb keel with retractable centerboard (stored inside the keel for shallow draft versatility and added stability), a spade rudder, and clean lines reminiscent of the Cal 20 (similar era and MORC focus). The fractional sloop rig provides lively performance in light-to-moderate winds, with good planing potential downwind and responsive handling.
Construction Details
| Designer | Martin Bludworth |
|---|---|
| Builder | Plastrend |
| Length | 22.000 ft |
| LOA | 22.000 ft |
| LWL | 17.000 ft |
| Beam | 7.000 ft |
| Displacement | 1200 lb |
| Ballast | 600 lb |
| Max Draft | 5.250 ft |
| Min Draft | 2.330 ft |
| Year Built | 1969 |
The standard boat dimensions
| i | 24 ft |
|---|---|
| j | 7.50 ft |
| p | 20.25 ft |
| e | 10.50 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 24 ft | 7.50 ft | 20.25 ft | 10.50 ft | - | - | - | - |
Sails
Mustang 22 (Plas-Trend 22) - MAINSAIL
| Luff | * 20.25 ft - (6172 mm) |
|---|---|
| Foot | * 10.5 ft - (3200 mm) |
| Leech | * 22.31 ft - (6800 mm) |
| Tack Angle | * 87.98 ° |
| Diagonal | * 22.48 ft - (6852 mm) |
| Head (inches) | * 4.5 in - (114 mm) |
| Area | 106.16 ft² |
| Edit in Calculator |
Mustang 22 (Plas-Trend 22) - JIBSAIL
| Luff | * 20.12 ft - (6133 mm) |
|---|---|
| Foot | * 9.9 ft - (3018 mm) |
| Leech | * 17.54 ft - (5346 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 8.63 ft - (2630 mm) |
| Deck Angle | * 12 ° |
| Area | 86.82 ft² |
| Edit in Calculator |
Mustang 22 (Plas-Trend 22) - GENOA
| Luff | * 23.89 ft - (7282 mm) |
|---|---|
| Foot | * 12.08 ft - (3682 mm) |
| Leech | * 22.51 ft - (6861 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 11.25 ft - (3429 mm) |
| Deck Angle | * 4 ° |
| Area | 134.41 ft² |
| Edit in Calculator |
Mustang 22 (Plas-Trend 22) - SPINNAKER
| Stays | * 23.89 ft - (7282 mm) |
|---|---|
| MidGirth | * 13.5 ft - (4115 mm) |
| Foot | * 13.5 ft - (4115 mm) |
| Perc LP | * 180 % |
| Area | 274.14 ft² |
| Edit in Calculator |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
