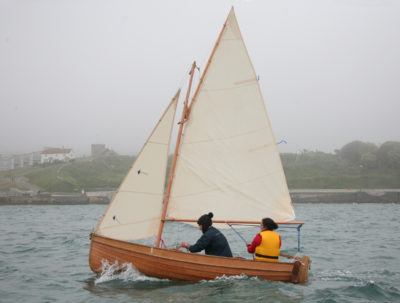

Acorn Dinghy 10'2" (Puffin)
Description
The Acorn Dinghy 10'2", often referred to as the "Puffin" in Iain Oughtred's catalog, is a compact, lightweight, and versatile small boat designed for rowing and sailing. It’s a traditional glued-lapstrake plywood dinghy inspired by classic Whitehall-style boats, optimized for solo use or light tandem rowing with optional sailing capability. Compared to the Acorn Skiff 11'9", the Puffin is shorter, slightly wider relative to its length, and designed with a fuller transom, making it a better sailor but slightly less optimized for rowing speed. Its compact size and low weight make it ideal for car-topping, beach launching, and use in sheltered waters like lakes, rivers, or calm coastal areas. The Puffin is part of Oughtred’s family of Acorn designs, evolving from his earlier 7'10" dinghy and sitting below the 11'9" Acorn Skiff in size. It’s praised for its balance of aesthetics, ease of construction, and performance, appealing to amateur builders with basic to intermediate skills. No lofting is required, simplifying the build process.
Construction Details
| Designer | Iain Oughtred |
|---|---|
| Builder | Home Built |
| Length | 10.000 ft |
| LOA | 10.167 ft |
| LWL | 9.830 ft |
| Beam | 4.167 ft |
| Displacement | 110 lb |
| Max Draft | 2.420 ft |
| Min Draft | 0.500 ft |
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| - | - | - | - | - | - | - | - |
Documents
Blueprints
Sails
Acorn Dinghy 10'2" (Puffin) - JIBSAIL
| Luff | 9 ft - (2743 mm) |
|---|---|
| Foot | 4.08 ft - (1244 mm) |
| Leech | 7.92 ft - (2414 mm) |
| Length Perpendicular | 3.59 ft - (1094 mm) |
| Area | * 16.15 ft² |
| Edit in Calculator |
Acorn Dinghy 10'2" (Puffin) - 4-SIDED SAIL
| Luff | 5.33 ft - (1625 mm) |
|---|---|
| Foot | 6.5 ft - (1981 mm) |
| Leech | 18 ft - (5486 mm) |
| Head | 12.42 ft - (3786 mm) |
| Diagonal | 7.83 ft - (2387 mm) |
| Tack Angle | 82.2 ° |
| Area | 57.53 ft² |
| Comments | This is the high peaked gunter mainsail used with the jib. |
| Edit in Calculator |
Acorn Dinghy 10'2" (Puffin) - 4-SIDED SAIL
| Luff | 5.03 ft - (1533 mm) |
|---|---|
| Foot | 6.5 ft - (1981 mm) |
| Leech | 13.03 ft - (3972 mm) |
| Head | 7.08 ft - (2158 mm) |
| Diagonal | 8.26 ft - (2518 mm) |
| Tack Angle | 90.59 ° |
| Area | 42.61 ft² |
| Comments | This is the Gunter mainsail. |
| Edit in Calculator |
Acorn Dinghy 10'2" (Puffin) - 4-SIDED SAIL
| Luff | 4.33 ft - (1320 mm) |
|---|---|
| Foot | 7.42 ft - (2262 mm) |
| Leech | 10.83 ft - (3301 mm) |
| Head | 7.83 ft - (2387 mm) |
| Diagonal | 8.08 ft - (2463 mm) |
| Tack Angle | 82.38 ° |
| Area | 43.02 ft² |
| Comments | This is a balance lug sail. The head is laced to the yard. The foot is loose secured at the tack and clew to a boom. |
| Edit in Calculator |
Acorn Dinghy 10'2" (Puffin) - 4-SIDED SAIL
| Luff | 5.16 ft - (1573 mm) |
|---|---|
| Foot | 6.58 ft - (2006 mm) |
| Leech | 10.9 ft - (3322 mm) |
| Head | 7.3 ft - (2225 mm) |
| Diagonal | 8.4 ft - (2560 mm) |
| Tack Angle | 90.54 ° |
| Area | 47.61 ft² |
| Comments | This is a standing lug sail. Lace the head to the yard. The tack will be secured at the mast. This particular sail is loose footed -- there is no boom. Two reef points recommended: at 16 and 32 inches above the clew. |
| Edit in Calculator |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
