Auklet
Description
The Auklet is a compact, glued lapstrake plywood dinghy designed by renowned Scottish naval architect Iain Oughtred, known for his elegant wooden small craft that blend traditional aesthetics with modern plywood construction techniques. Introduced in the early 2000s, the Auklet serves primarily as a versatile yacht tender, daysailer, or rowing boat, emphasizing simplicity, portability, and seaworthiness for sheltered waters. At just over 7 feet, it's ideal for solo use or as a family tender, capable of sailing, rowing, or motoring with a small outboard. Its lapstrake (clinker) hull provides a smooth ride and visual appeal, while the lightweight design (built from two 4x8 ft plywood sheets) makes it trailerable and easy to store. Oughtred's plans include multiple rig options, allowing customization for sail, oar, or power. It's praised for its balance and ease of build, with skill level rated basic to intermediate—no lofting required.
Construction Details
| Designer | Iain Oughtred |
|---|---|
| Length | 7.000 ft |
| LOA | 7.167 ft |
| Beam | 3.920 ft |
| Displacement | 50 lb |
| Max Draft | 2.000 ft |
| Min Draft | 0.500 ft |
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| - | - | - | - | - | - | - | - |

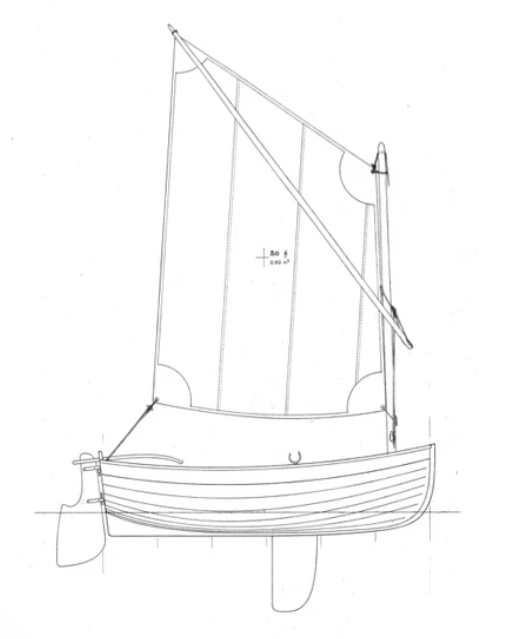

Sails
Auklet - 4-SIDED SAIL
| Luff | 5.17 ft - (1576 mm) |
|---|---|
| Foot | 5 ft - (1524 mm) |
| Leech | 8 ft - (2438 mm) |
| Head | 5.17 ft - (1576 mm) |
| Diagonal | 6.83 ft - (2082 mm) |
| Tack Angle | 84.36 ° |
| Area | 30.36 ft² |
| Comments | Spritsail |
| Edit in Calculator |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
