Eastport Pram MK II
Description
The Eastport Pram Mk II is a compact, lightweight wooden dinghy designed by John C. Harris and produced by Chesapeake Light Craft (CLC). It's renowned for its classic lapstrake (clinker) appearance, ease of construction, and versatility as a tender for larger boats. The "Mk II" designation refers to the updated version introduced around 2010, featuring pre-drilled stitching holes in the hull panels (via CLC's patented LapStitch™ process) and pre-marked bulkhead positions for faster assembly. Over 800 units have been built, making it one of the most popular small dinghies worldwide.
Construction Details
| Designer | John C. Harris (Chesapeake Light Craft) |
|---|---|
| Builder | Chesapeake Light Craft |
| Length | 8.000 ft |
| LOA | 7.750 ft |
| Beam | 4.000 ft |
| Displacement | 65 lb |
| Max Draft | 2.083 ft |
| Min Draft | 0.420 ft |
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| - | - | - | - | - | - | - | - |
Documents
Sails

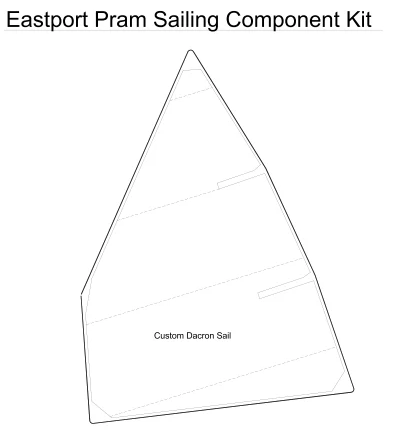

Eastport Pram MK II - 4-SIDED SAIL
| Luff | 3.41 ft - (1039 mm) |
|---|---|
| Foot | 7.04 ft - (2146 mm) |
| Leech | 10.09 ft - (3075 mm) |
| Head | 7.16 ft - (2182 mm) |
| Diagonal | 7.67 ft - (2338 mm) |
| Tack Angle | 87.2 ° |
| Area | 39.37 ft² |
| Comments | This is the balance lug sail for the Mark II version. Lace the head to the yard. Secure the head to the yard with marlin hitches. The foot is loose -- it is attached at the tack and clew to a boom. Two battens are recommended. |
| Edit in Calculator |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
