Eastport Pram
Description
The Eastport Pram is a compact, versatile lightweight wooden dinghy designed by John C. Harris and produced by Chesapeake Light Craft (CLC, introduced in 1999. With plans and kits available from Chesapeake Light Craft (CLC) in Annapolis, Maryland. Inspired by traditional prams and workboats of the Chesapeake Bay region, it combines simplicity, portability, and multi-purpose functionality for beginners, families, and camp-cruisers.
Construction Details
| Designer | John C. Harris (Chesapeake Light Craft) |
|---|---|
| Length | 8.000 ft |
| LOA | 7.790 ft |
| Beam | 4.000 ft |
| Displacement | 55 lb |
| Max Draft | 2.083 ft |
| Min Draft | 0.540 ft |
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| - | - | - | - | - | - | - | - |

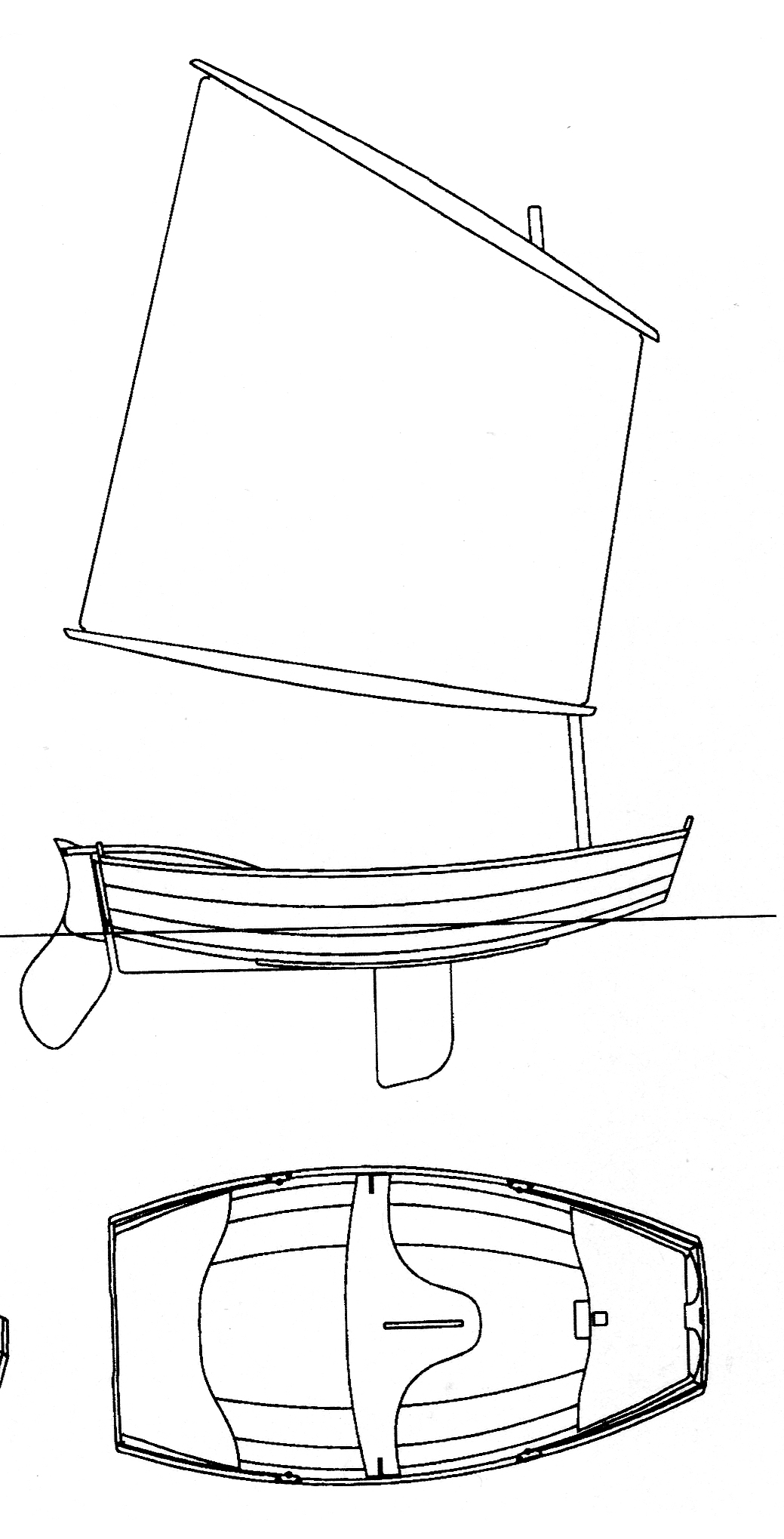

Blueprints
Sails
Eastport Pram - 4-SIDED SAIL
| Luff | 4.73 ft - (1442 mm) |
|---|---|
| Foot | 6.75 ft - (2057 mm) |
| Leech | 7.29 ft - (2222 mm) |
| Head | 6.75 ft - (2057 mm) |
| Diagonal | 8.38 ft - (2554 mm) |
| Tack Angle | 92.1 ° |
| Area | 39.5 ft² |
| Comments |
Lug sail, normally vertically cut with one row of reef points, head and foot edge are attached to spars with boltrope into a groove or grommets and lacing. This was the first Eastport Pram rig, the second has a modified rig with completely different dimensions and battens added to the lug and is typically done as a crosscut sail. |
| Edit in Calculator |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
