Jimmy Skiff 2
Description
The Jimmy Skiff II is a 13 ft 6 in (4.11 m) glued-lapstrake plywood sailing and rowing skiff designed in 2013 by Chesapeake Light Craft (CLC) as a modern, easier-to-build evolution of the original Jimmy Skiff. Weighing only 90–100 lbs, she combines a lightweight flat-bottom hull with graceful, flared sides, a sprit rig of 70 sq ft (balanced lug optional), and a pivoting centerboard or leeboard option, making her an ideal learn-to-sailboat that rows beautifully and planes readily off the wind. With room for two adults plus gear, simple stitch-and-glue construction (150–200 build hours from a CNC-cut kit or plans), and the ability to be car-topped or trailered behind anything, the Jimmy Skiff II has become one of CLC’s best-selling designs—thousands are now sailing and rowing worldwide as family daysailers, yacht tenders, or camp-cruising micro-adventurers.
Construction Details
| Designer | John C. Harris (Chesapeake Light Craft) |
|---|---|
| Builder | Home Built |
| Length | 13.180 ft |
| LOA | 13.180 ft |
| Beam | 4.330 ft |
| Displacement | 150 lb |
| Max Draft | 2.000 ft |
| Min Draft | 0.330 ft |
| Year Built | 2017 |
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| - | - | - | - | - | - | - | - |
Sails

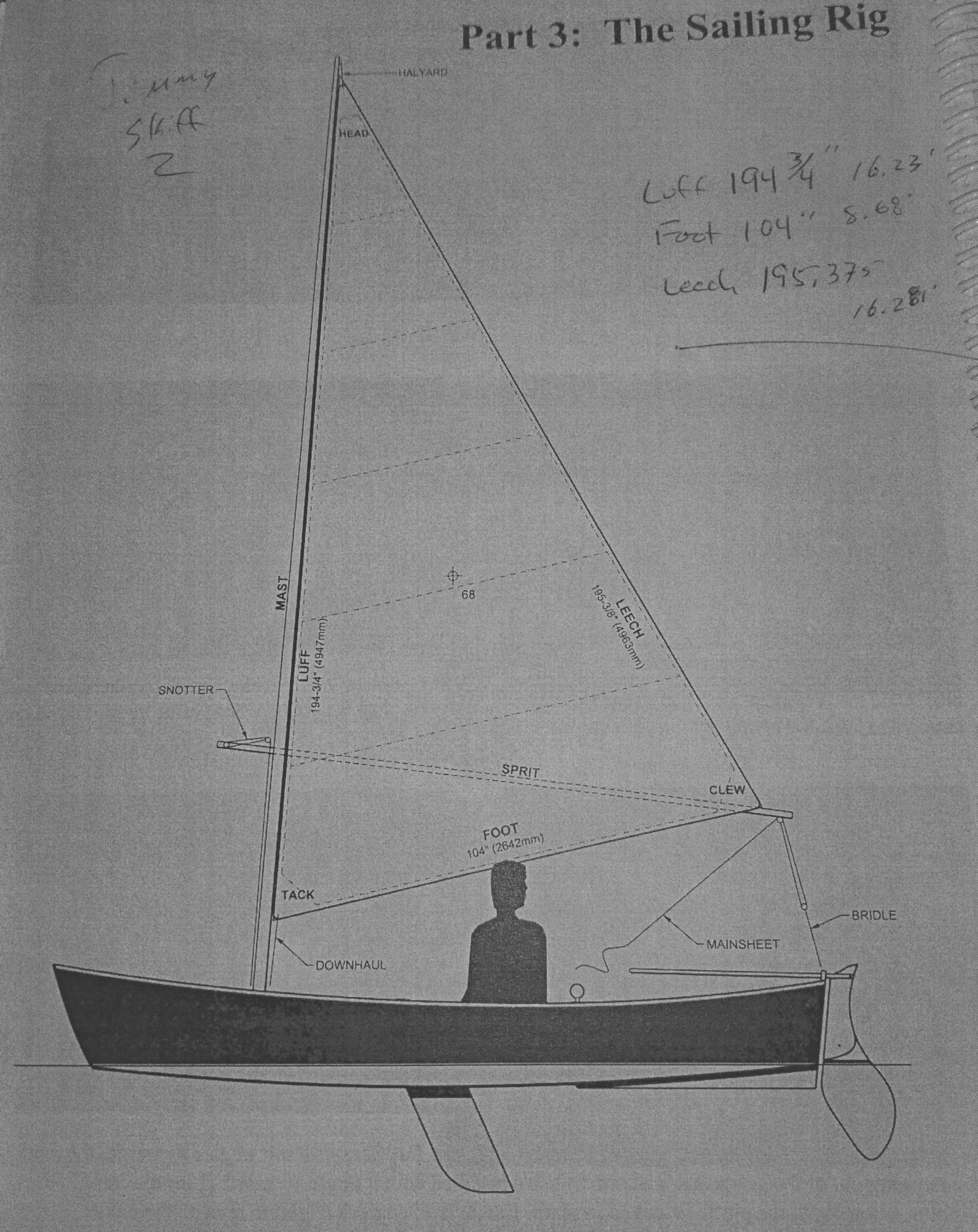

Jimmy Skiff 2 - 3-SIDED SAIL
| Luff | 16.23 ft - (4947 mm) |
|---|---|
| Foot | 8.68 ft - (2646 mm) |
| Leech | 16.28 ft - (4962 mm) |
| Tack Ang | 74.8 ° |
| Area | 67.98 ft² |
| Comments | This is a Leg-O'-Mutton sprit rig. The luff is laced to the mast. A sprit is used to extend the clew. |
| Edit in Calculator |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
