Macgregor 13' 7" Canoe
Description

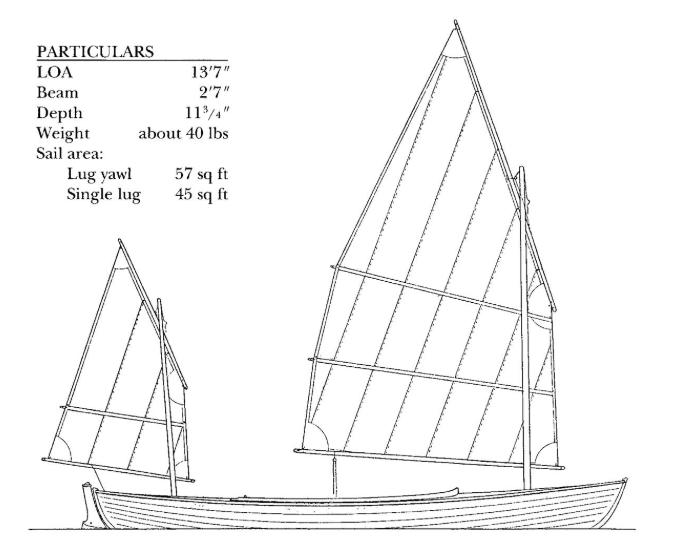

MacGregor Canoe (13'7") Overview The MacGregor Canoe is a classic double-ended sailing and paddling canoe designed by Scottish naval architect Iain Oughtred in the 1980s, inspired by 19th-century decked sailing canoes popularized by John "Rob Roy" MacGregor (1825–1892), a pioneering explorer who credited with inventing the modern sailing canoe. Named in homage to MacGregor, this Oughtred design revives the concept with modern glued-lapstrake plywood construction for quick, lofting-free builds. The 13'7" (4.14 m) version is the shortest in the series, offering ultralight portability for solo adventurers on lakes, rivers, or calm coastal waters—ideal as a tender, day sailor, or camp cruiser. It's beamier and more stable than Oughtred's smaller Wee Rob, carrying a lug yawl rig effortlessly while maintaining elegant lines. Plans allow scaling to 14'6", 15'8", or 17'3" by adjusting mold spacing and stems, using the same patterns.
Construction Details
| Designer | Iain Oughtred |
|---|---|
| Length | 13.580 ft |
| LOA | 13.580 ft |
| Beam | 2.580 ft |
| Displacement | 40 lb |
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| - | - | - | - | - | - | - | - |
Documents
Sails
Macgregor 13' 7" Canoe - 4-SIDED SAIL
| Luff | 4.5 ft - (1372 mm) |
|---|---|
| Foot | 6.5 ft - (1981 mm) |
| Leech | 12 ft - (3658 mm) |
| Head | 7.5 ft - (2286 mm) |
| Diagonal | 7.88 ft - (2402 mm) |
| Tack Angle | 89.6 ° |
| Area | 43.47 ft² |
| Comments | Lug Main, 50 square feet with roach, with two full length battens, two reefs on each full batten |
| Edit in Calculator |
Macgregor 13' 7" Canoe - 4-SIDED SAIL
| Luff | 2.67 ft - (814 mm) |
|---|---|
| Foot | 3.33 ft - (1015 mm) |
| Leech | 6.25 ft - (1905 mm) |
| Head | 3.5 ft - (1067 mm) |
| Diagonal | 4.25 ft - (1295 mm) |
| Tack Angle | 89.5 ° |
| Area | 11.55 ft² |
| Comments | Lug Mizzen, one full length batten, one reef point at full batten location. |
| Edit in Calculator |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
