Penobscott 17
Description
The Penobscot 17, a lightweight glued-lapstrake plywood daysailer/cruiser/rowboat designed by Arch Davis (Arch Davis Design, Maine, USA). Introduced as a larger evolution of the Penobscot 14 (inspired by builder requests for more capacity while retaining similar shapely, sea-kindly lines), it features traditional aesthetics with a fine high bow, double-ended hull, and five-strake planking for excellent rowing efficiency, stability, and performance in protected waters, coastal exploring, or camp-cruising. The design emphasizes amateur-friendly construction (stitch-and-glue or glued-lapstrake plywood/epoxy, full-size patterns, no lofting; kits/plans available), positive flotation for safety, a centerboard/daggerboard for shallow draft, and versatile sailing/rowing balance. Arch Davis offers three interchangeable rigs: gunter sloop (most common in reviews), ketch (yawl-like with main + mizzen for easy shorthanded control, reefing, and heavy-weather versatility), and schooner. It's praised for spirited sailing (responsive, dry, and stable), excellent rowing (tracks well, not much slower than kayaks), trailerability, and family/small-group use; production is plans/kit-based (via Arch Davis Design, Duckworks, or WoodenBoat), with many hulls built by home builders (hundreds estimated across variants), and remains available today.
Construction Details
| Designer | Arch Davis |
|---|---|
| Builder | Home Built |
| Length | 17.000 ft |
| LOA | 17.000 ft |
| LWL | 15.670 ft |
| Beam | 5.330 ft |
| Displacement | 3000 lb |
| Max Draft | 3.000 ft |
| Min Draft | 0.790 ft |
The standard boat dimensions
| i | 12.92 ft |
|---|---|
| j | 6 ft |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 12.92 ft | 6 ft | - | - | - | - | - | - |
Documents

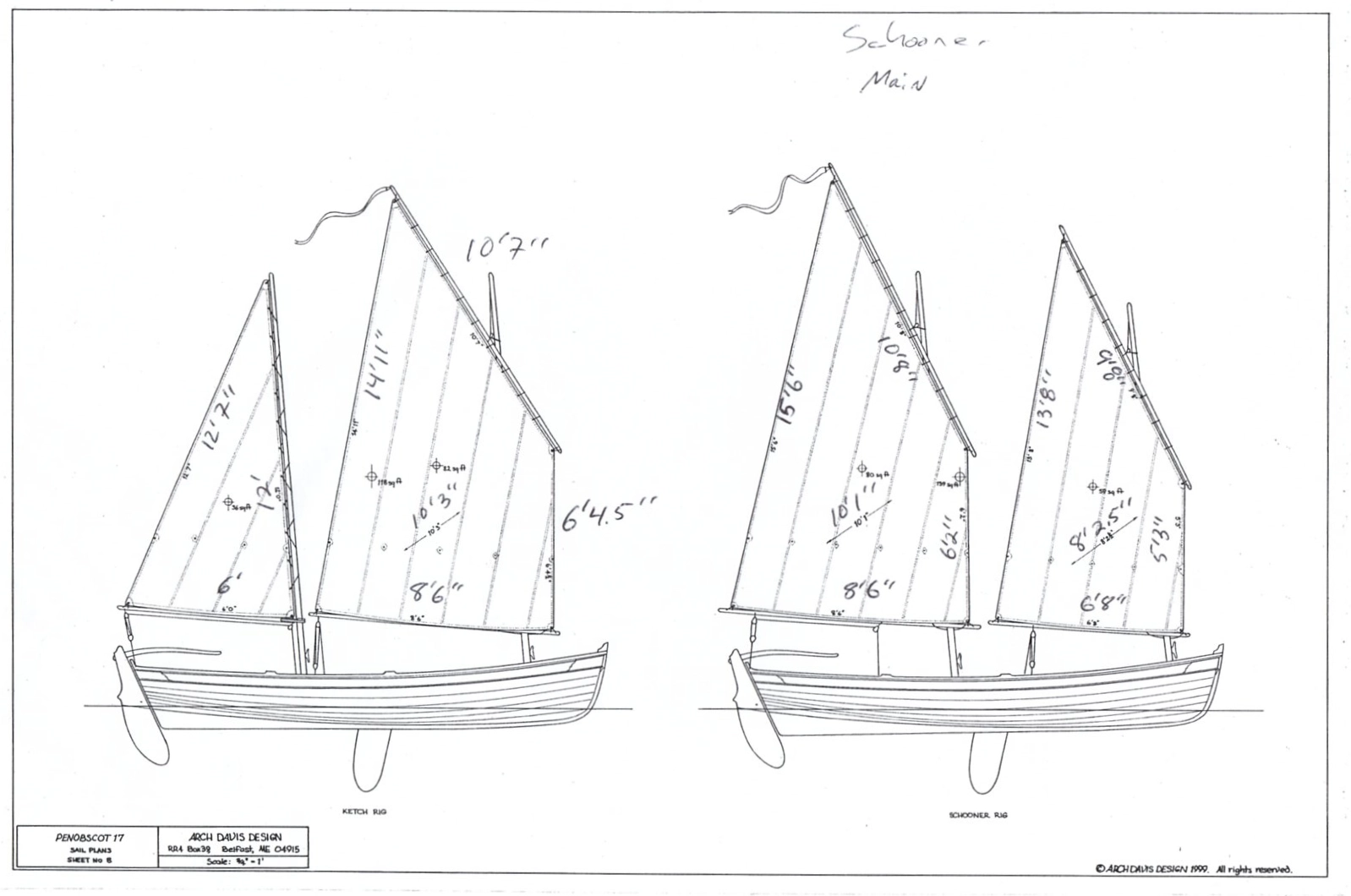

Sails
Penobscott 17 - JIBSAIL
| Luff | 12.67 ft - (3862 mm) |
|---|---|
| Foot | 6.58 ft - (2006 mm) |
| Leech | 11.083 ft - (3378 mm) |
| Percentage LP | 95.83 % |
| Length Perpendicular | * 6.9 ft - (2103 mm) |
| Deck Angle | * 11.89 ° |
| Area | * 36.43 ft² |
| Comments | Gunter Sloop Rig, Jib |
| Edit in Calculator |
Penobscott 17 - 3-SIDED SAIL
| Luff | 12 ft - (3658 mm) |
|---|---|
| Foot | 6 ft - (1829 mm) |
| Leech | 12.58 ft - (3834 mm) |
| Tack Ang | 81.3 ° |
| Area | 35.59 ft² |
| Comments | Ketch Rig Mizzen |
| Edit in Calculator |
Penobscott 17 - 4-SIDED SAIL
| Luff | 6.33 ft - (1929 mm) |
|---|---|
| Foot | 9.5 ft - (2896 mm) |
| Leech | 18.5 ft - (5639 mm) |
| Head | 11.25 ft - (3429 mm) |
| Diagonal | 11 ft - (3353 mm) |
| Tack Angle | 85.6 ° |
| Area | 87.14 ft² |
| Comments | Gunter Sloop Rig, Gunter Main Sail |
| Edit in Calculator |
Penobscott 17 - 4-SIDED SAIL
| Luff | 6.38 ft - (1945 mm) |
|---|---|
| Foot | 8.5 ft - (2591 mm) |
| Leech | 14.92 ft - (4548 mm) |
| Head | 10.58 ft - (3225 mm) |
| Diagonal | 10.25 ft - (3124 mm) |
| Tack Angle | 85.8 ° |
| Area | 81.25 ft² |
| Comments | Ketch Rig, Lug Main |
| Edit in Calculator |
Penobscott 17 - 4-SIDED SAIL
| Luff | 6.17 ft - (1881 mm) |
|---|---|
| Foot | 8.5 ft - (2591 mm) |
| Leech | 15.5 ft - (4724 mm) |
| Head | 10.67 ft - (3252 mm) |
| Diagonal | 10.08 ft - (3072 mm) |
| Tack Angle | 85.2 ° |
| Area | 79.55 ft² |
| Comments | Schooner Rig Lug Main |
| Edit in Calculator |
Penobscott 17 - 4-SIDED SAIL
| Luff | 5.25 ft - (1600 mm) |
|---|---|
| Foot | 6.67 ft - (2033 mm) |
| Leech | 13.67 ft - (4167 mm) |
| Head | 9.67 ft - (2947 mm) |
| Diagonal | 8.21 ft - (2502 mm) |
| Tack Angle | 86.2 ° |
| Area | 56.63 ft² |
| Comments | Schooner Rig Lug Foresail |
| Edit in Calculator |
