Sea Hen
Description

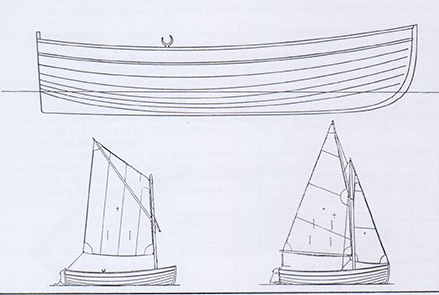

The Sea Hen is 9'6" dinghy designed by Iain Oughtred. It has two rig options a spritsail or a gunter main with a jib.
Construction Details
| Designer | Iain Oughtred |
|---|---|
| Length | 9.000 ft |
| LOA | 9.500 ft |
| Beam | 4.167 ft |
| Displacement | 100 lb |
The standard boat dimensions
| i | 10 ft |
|---|---|
| j | 3 ft |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 10 ft | 3 ft | - | - | - | - | - | - |
Documents
Sails
Sea Hen - JIBSAIL
| Luff | 8.33 ft - (2539 mm) |
|---|---|
| Foot | 3.5 ft - (1067 mm) |
| Leech | 7.5 ft - (2286 mm) |
| Percentage LP | * 105 % |
| Length Perpendicular | * 3.15 ft - (960 mm) |
| Deck Angle | * 9.11 ° |
| Area | * 13.12 ft² |
| Comments | Jib for gunter sloop rig |
| Edit in Calculator |
Sea Hen - 4-SIDED SAIL
| Luff | 5.75 ft - (1753 mm) |
|---|---|
| Foot | 5.75 ft - (1753 mm) |
| Leech | 11.67 ft - (3557 mm) |
| Head | 5.75 ft - (1753 mm) |
| Diagonal | 7.83 ft - (2387 mm) |
| Tack Angle | 85.8 ° |
| Area | 36.42 ft² |
| Comments | Gunter main, gunter sloop rig |
| Edit in Calculator |
Sea Hen - SPRIT
| Luff | 6 ft - (1829 mm) |
|---|---|
| Foot | 5.75 ft - (1753 mm) |
| Leech | 9 ft - (2743 mm) |
| Tack Angle | * 86.9 ° |
| Diag (clew/throat) | 8.083 ft - (2464 mm) |
| Head | 5.5 ft - (1676 mm) |
| Area | * 39.15 ft² |
| Edit in Calculator |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
