Shearwater 16
Description
The Shearwater 16 is a 16-foot double-ended pulling boat designed by Joel White for WoodenBoat Magazine, inspired by Norwegian faerings. It’s a lightweight, versatile craft optimized for rowing, with an optional sailing rig, and built using glued-lapstrake plywood construction for amateur builders. Below is a concise summary based on available information from provided search results.
Construction Details
| Designer | Joel White |
|---|---|
| Length | 16.000 ft |
| LOA | 16.000 ft |
| Beam | 4.420 ft |
| Displacement | 150 lb |
| Max Draft | 2.000 ft |
| Min Draft | 0.540 ft |
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| - | - | - | - | - | - | - | - |

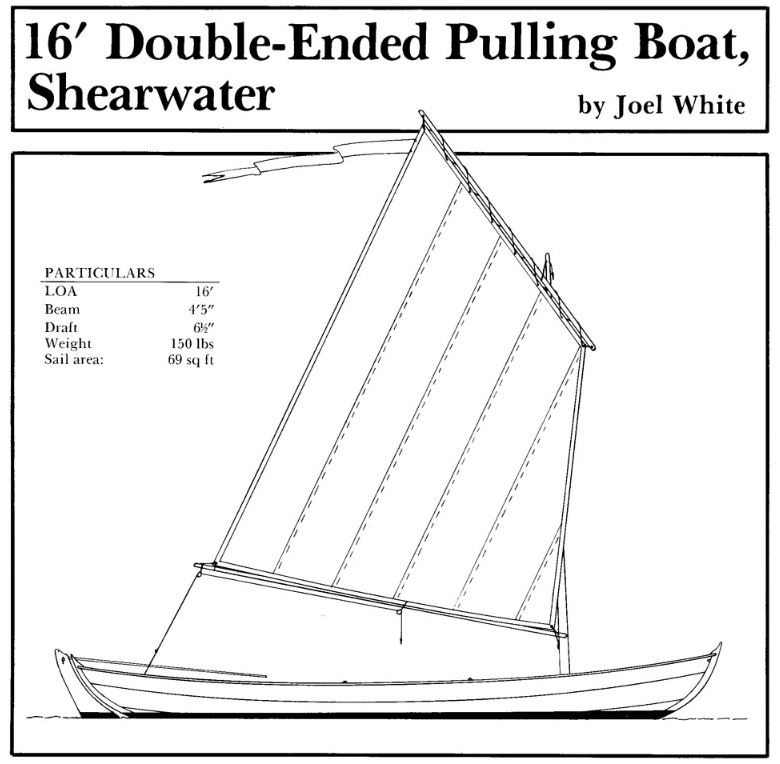

Blueprints
Sails
Shearwater 16 - 4-SIDED SAIL
| Luff | 7.17 ft - (2185 mm) |
|---|---|
| Foot | 8.75 ft - (2667 mm) |
| Leech | 12.33 ft - (3758 mm) |
| Head | 6.92 ft - (2109 mm) |
| Diagonal | 10.83 ft - (3301 mm) |
| Tack Angle | 85.1 ° |
| Area | 68.58 ft² |
| Comments | Lug Sail |
| Edit in Calculator |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
