The Twelve
Description
The Twelve (also known as The Twelve) is a 12-foot fiberglass sailing dinghy designed and built by J. Melton of J. Melton Sailboats, Inc. in Andover, Ohio, in the early to mid-1980s. It was produced as a direct clone of the popular Laser one-design dinghy, sharing the same hull form, sail, mast, boom, daggerboard, and rudder as Melton's related The Ten model (a slightly smaller soft-chine daysailer). Construction history is limited, with very low production numbers—likely only a few dozen hulls total—before the small company ceased operations around 1990.
Construction Details
| Designer | J. Melton |
|---|---|
| Builder | J. Melton Sailboats, Inc. (Ohio) |
| Length | 12.000 ft |
| LOA | 12.000 ft |
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| - | - | - | - | - | - | - | - |
Documents

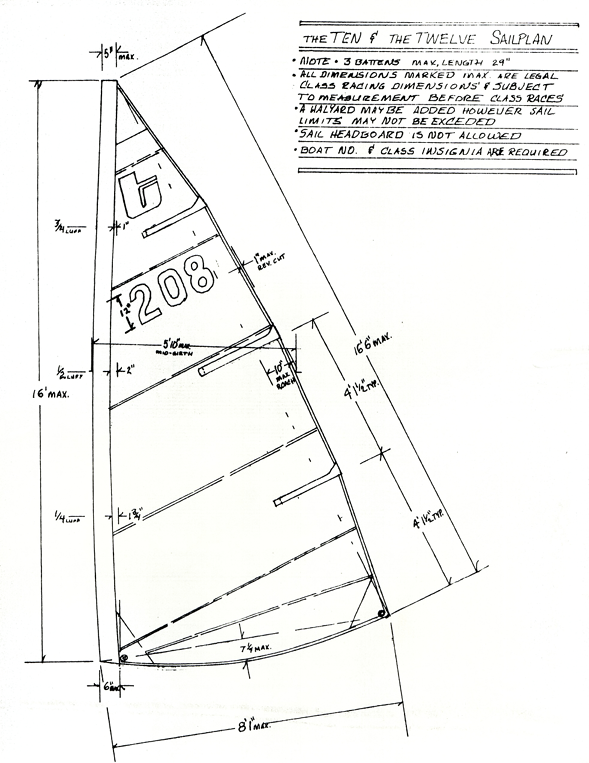

Sails
The Twelve - MAINSAIL
| Luff | 16 ft - (4877 mm) |
|---|---|
| Foot | 8.08 ft - (2463 mm) |
| Leech | * 17.54 ft - (5346 mm) |
| Tack Angle | * 87.99 ° |
| Diagonal | * 17.67 ft - (5386 mm) |
| Head (inches) | * 3.5 in - (89 mm) |
| Area | 64.55 ft² |
| Edit in Calculator |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
Comments
