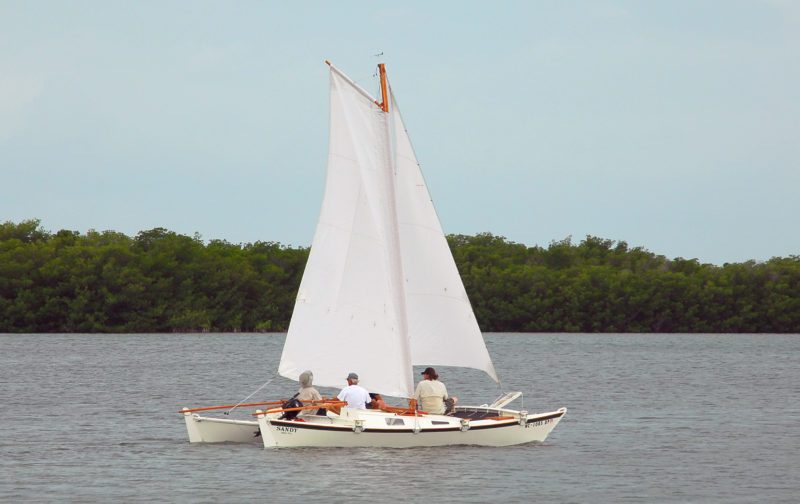

Tiki 21 Catamaran
Description
The Tiki 21 Cat (also known as the Wharram Tiki 21) is a 21-foot trailerable coastal cruising catamaran designed in 1981 by James Wharram (with Hanneke Boon) as an easy-to-build "Coastal Trek" catamaran using epoxy/glass stitch-and-glue plywood construction techniques that were innovative at the time. It won first prize in Cruising World magazine’s 1982 design competition for a “Trailable Gunkholer.” Plans have been extremely popular, with over 925 sets sold by 2010 and hundreds of boats built worldwide by amateur and professional builders (exact total built is unknown but substantial, with many still sailing today).
Construction Details
| Designer | James Wharram Designs |
|---|---|
| Builder | Home Built |
| Length | 21.000 ft |
| LOA | 21.000 ft |
| LWL | 18.500 ft |
| Beam | 12.000 ft |
| Displacement | 790 lb |
| Min Draft | 1.167 ft |
| Year Built | 1981 |
The standard boat dimensions
| i | 22 ft |
|---|---|
| j | 8 ft |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 22 ft | 8 ft | - | - | - | - | - | - |
Documents
Blueprints
Sails
Tiki 21 Catamaran - JIBSAIL
| Luff | 20 ft - (6096 mm) |
|---|---|
| Foot | 8.5 ft - (2591 mm) |
| Leech | 18.17 ft - (5538 mm) |
| Length Perpendicular | 7.72 ft - (2353 mm) |
| Area | * 77.22 ft² |
| Edit in Calculator |
Tiki 21 Catamaran - ASYMMETRICAL
| Luff | 23 ft - (7010 mm) |
|---|---|
| Foot | 13.5 ft - (4115 mm) |
| Leech | 21.25 ft - (6477 mm) |
| Perc LP | * 165 % |
| Area | * 233 ft² |
| Edit in Calculator |
Tiki 21 Catamaran - ASYMMETRICAL
| Luff | 19.5 ft - (5944 mm) |
|---|---|
| Foot | 14 ft - (4267 mm) |
| Leech | 18.5 ft - (5639 mm) |
| Perc LP | * 165 % |
| Area | * 205 ft² |
| Edit in Calculator |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
