Tiki 26
Description

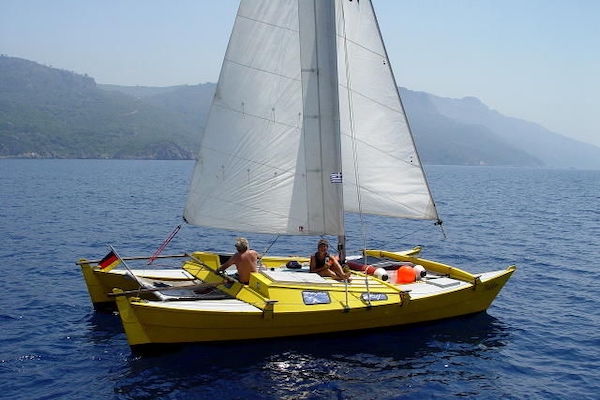

The Tiki 26 (also known as the Wharram Tiki 26) is a 26-foot (LOA 26 ft / 7.92 m) coastal and ocean-capable cruising catamaran designed by James Wharram (with input from Hanneke Boon) as an enlarged evolution of the popular Tiki 21. It was developed by popular demand for owners wanting more serious coastal cruising with proven ocean-going potential (multiple Tiki 26s have completed transatlantic, transpacific, and other long voyages). The boat is a self-build plans design using plywood/glass/epoxy stitch-and-glue construction with lashed crossbeams, deep V-hulls, and no fixed keels or boards (relying on daggerboards/leeboards in some setups). Plans have been widely sold since the early 1980s, with well over 1,200 sets distributed and hundreds of boats built worldwide by amateur and professional builders—making it one of the more successful larger Tiki models in terms of actual completions.
Construction Details
| Designer | James Wharram Designs |
|---|---|
| Builder | Home Built |
| Length | 26.000 ft |
| LOA | 26.000 ft |
| LWL | 22.500 ft |
| Beam | 15.090 ft |
| Displacement | 1543 lb |
| Max Draft | 1.310 ft |
| Year Built | 1981 |
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | 21.75 ft |
| e | 11.58 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| - | - | 21.75 ft | 11.58 ft | - | - | - | - |
Blueprints
Sails
Tiki 26 - JIBSAIL
| Luff | 23.5 ft - (7163 mm) |
|---|---|
| Foot | 10 ft - (3048 mm) |
| Leech | 21.08 ft - (6425 mm) |
| Length Perpendicular | 8.97 ft - (2734 mm) |
| Area | * 105.38 ft² |
| Edit in Calculator |
Tiki 26 - ASYMMETRICAL
| Luff | 24 ft - (7315 mm) |
|---|---|
| Foot | 14 ft - (4267 mm) |
| Leech | 22 ft - (6706 mm) |
| Area | * 252 ft² |
| Edit in Calculator |
Tiki 26 - STORMJIB
| Luff | 14.5 ft - (4420 mm) |
|---|---|
| Foot | 5.5 ft - (1676 mm) |
| Leech | 12.5 ft - (3810 mm) |
| Length Perp | * 4.67 ft - (1423 mm) |
| Area | * 33.86 ft² |
| Edit in Calculator |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
