Tiki 30
Description
The Tiki 30 (also known as the Wharram Tiki 30) is a 30-foot coastal and ocean-capable cruising catamaran designed by James Wharram (with Hanneke Boon) as a larger, more spacious evolution in the popular Tiki series. It is a self-build plans design using plywood/glass/epoxy stitch-and-glue construction with lashed crossbeams, deep V-hulls, and optional deck pod for added living space. Plans have been widely sold since the 1980s/1990s, with hundreds of boats built worldwide by amateur and professional builders (exact numbers are not published but significant, with many examples used for extended coastal cruising and some ocean voyages). The design emphasizes simplicity, shallow draft for beaching/gunkholing, low cost, and a stable platform suitable for liveaboard or charter use, sleeping up to 6 (two doubles in the hulls plus deck area).
Construction Details
| Designer | James Wharram Designs |
|---|---|
| Builder | Home Built |
| Length | 30.000 ft |
| LOA | 30.000 ft |
| LWL | 25.480 ft |
| Beam | 16.330 ft |
| Displacement | 2200 lb |
| Max Draft | 2.083 ft |
| Year Built | 1985 |
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| - | - | - | - | - | - | - | - |
Documents

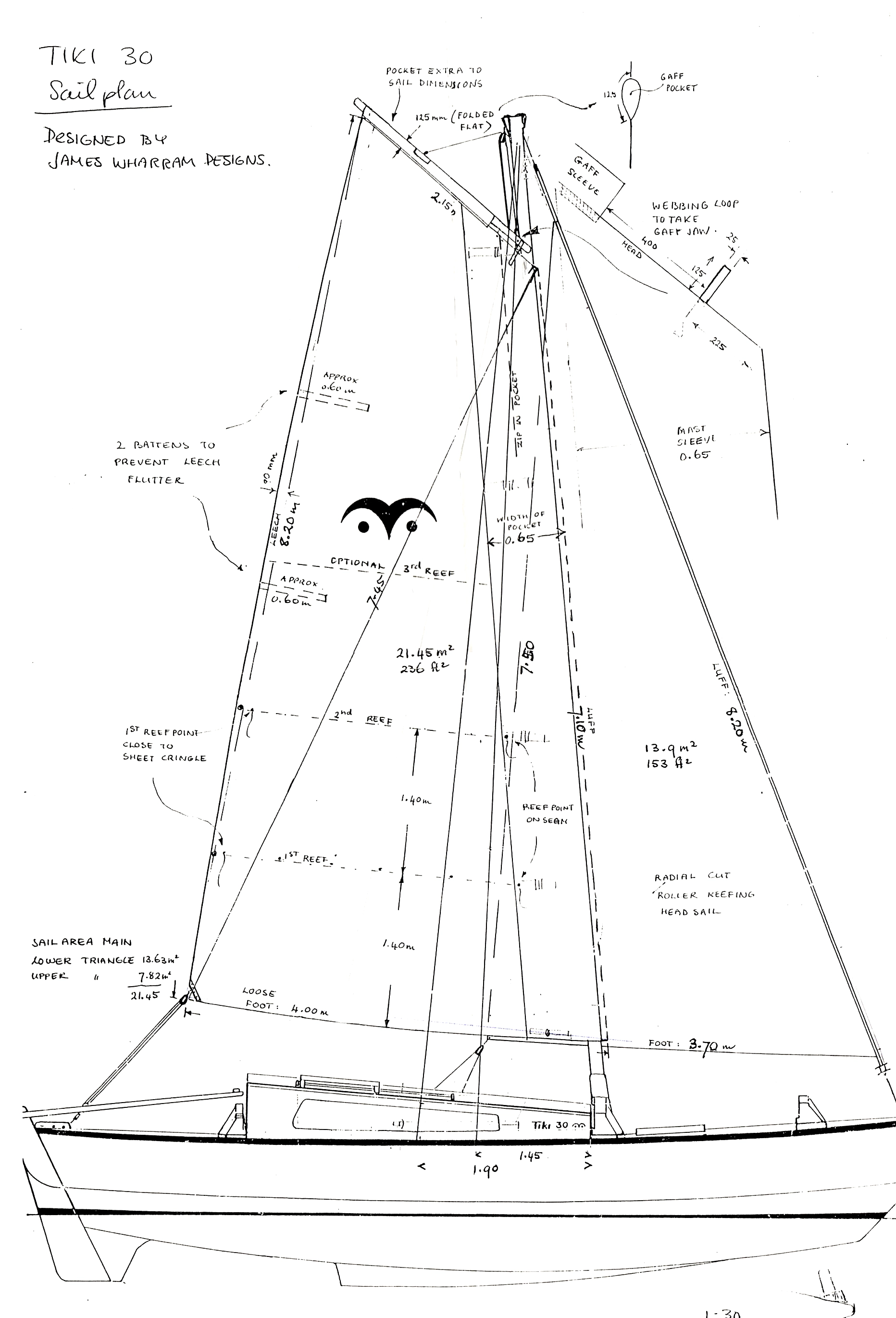

Blueprints
Sails
Tiki 30 - JIBSAIL
| Luff | 26.92 ft - (8205 mm) |
|---|---|
| Foot | 12.167 ft - (3709 mm) |
| Leech | 24.67 ft - (7519 mm) |
| Length Perpendicular | * 11.13 ft - (3392 mm) |
| Area | * 149.87 ft² |
| Edit in Calculator |
Tiki 30 - ASYMMETRICAL
| Luff | 30 ft - (9144 mm) |
|---|---|
| Foot | 17 ft - (5182 mm) |
| Leech | 27 ft - (8230 mm) |
| Area | * 382 ft² |
| Edit in Calculator |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
