Vivacity 21
Description

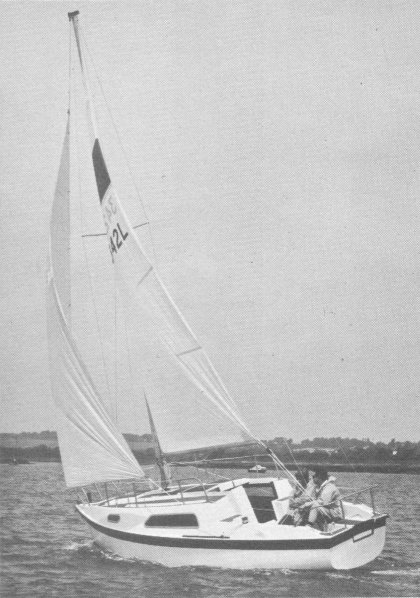

The Vivacity 21 (also marketed as the Vivacity 650) is a small, affordable twin-keel (bilge keel) masthead sloop designed by Alan F. Hill (with contributions from D. Pollard in some references). It was built by Russel Marine Ltd. in the UK, primarily around 1970 (with production in the early 1970s). The boat was developed as a practical family daysailer/weekender for coastal and tidal waters, offering shallow draft for beaching or drying out while providing basic cruising accommodations. It is part of the Vivacity series (including the Vivacity 20 and 24) and shares the twin-keel philosophy common in British pocket cruisers of the era for tidal access. It features a simple, forgiving layout with a twin-keel configuration for stability and versatility, a masthead sloop rig for easy handling, and light displacement for spirited performance in moderate conditions. Owners appreciate its practicality, low cost, and ability to sit upright on the tide, though it is best suited for protected to semi-protected waters rather than heavy offshore work.
Construction Details
| Designer | Alan F. Hill |
|---|---|
| Builder | Russell Marine Ltd. (UK) |
| Length | 21.250 ft |
| LOA | 21.250 ft |
| LWL | 19.250 ft |
| Beam | 7.170 ft |
| Displacement | 2500 lb |
| Ballast | 1100 lb |
| Max Draft | 2.330 ft |
| Year Built | 1970 |
The standard boat dimensions
| i | 26 ft |
|---|---|
| j | 7.42 ft |
| p | 22.50 ft |
| e | 9.50 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 26 ft | 7.42 ft | 22.50 ft | 9.50 ft | - | - | - | - |
Documents
Sails
Vivacity 21 - MAINSAIL
| Luff | * 22.5 ft - (6858 mm) |
|---|---|
| Foot | * 9.5 ft - (2896 mm) |
| Leech | * 23.91 ft - (7288 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 24.12 ft - (7352 mm) |
| Head (inches) | * 4.5 in - (114 mm) |
| Area | * 110.54 ft² |
| Edit in Calculator |
Vivacity 21 - JIBSAIL
| Luff | * 21.63 ft - (6593 mm) |
|---|---|
| Foot | * 9.66 ft - (2944 mm) |
| Leech | * 19.13 ft - (5831 mm) |
| Percentage LP | * 115.09 % |
| Length Perpendicular | * 8.54 ft - (2603 mm) |
| Deck Angle | * 11.92 ° |
| Area | * 92.37 ft² |
| Edit in Calculator |
Vivacity 21 - GENOA
| Luff | 24.25 ft - (7391 mm) |
|---|---|
| Foot | 11 ft - (3353 mm) |
| Leech | 22.25 ft - (6782 mm) |
| Percentage LP | * 135.85 % |
| Length Perpendicular | * 10.08 ft - (3072 mm) |
| Deck Angle | * 7.72 ° |
| Area | * 122.17 ft² |
| Edit in Calculator |
Vivacity 21 - GENOA
| Luff | 25.75 ft - (7849 mm) |
|---|---|
| Foot | 11.75 ft - (3581 mm) |
| Leech | 24.5 ft - (7468 mm) |
| Percentage LP | * 149.33 % |
| Length Perpendicular | * 11.08 ft - (3377 mm) |
| Deck Angle | * 3.46 ° |
| Area | * 142.7 ft² |
| Edit in Calculator |
Vivacity 21 - ASYMMETRICAL
| Luff | 26 ft - (7925 mm) |
|---|---|
| Foot | 13 ft - (3962 mm) |
| Leech | 24 ft - (7315 mm) |
| Perc LP | * 165 % |
| Area | * 254 ft² |
| Edit in Calculator |
Vivacity 21 - SPINNAKER
| Stays | * 25.69 ft - (7830 mm) |
|---|---|
| MidGirth | * 13.36 ft - (4072 mm) |
| Foot | * 13.36 ft - (4072 mm) |
| Perc LP | * 180 % |
| Area | * 292 ft² |
| Edit in Calculator |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
