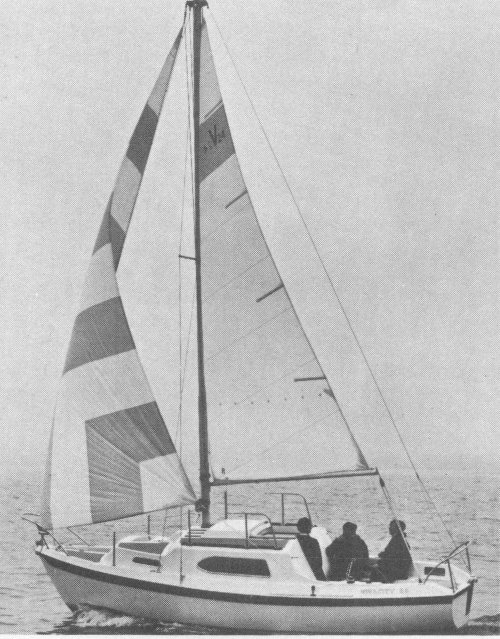

Vivacity 24
Description
The Vivacity 24 is a solidly built, affordable twin-keel (bilge keel) family cruiser designed by Alan F. Hill and built by Russel Marine Ltd. in the UK starting in 1969 (production continued into the early 1980s). It was developed as a practical coastal cruiser offering good accommodations and the ability to dry out upright on a falling tide, making it popular for tidal waters and gunkholing. The design is a moderate-displacement masthead sloop with options for twin keels or a single fin keel with rudder on skeg. It provides a stable, forgiving platform suitable for beginners or families on weekend or short coastal cruises, rather than high-performance racing or heavy offshore work.
Construction Details
| Designer | Alan F. Hill |
|---|---|
| Builder | Russell Marine Ltd. (UK) |
| Length | 23.500 ft |
| LOA | 23.500 ft |
| LWL | 20.750 ft |
| Beam | 8.000 ft |
| Displacement | 4200 lb |
| Ballast | 1750 lb |
| Max Draft | 3.670 ft |
| Year Built | 1969 |
The standard boat dimensions
| i | 24 ft |
|---|---|
| j | 9.96 ft |
| p | 21 ft |
| e | 10.08 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 24 ft | 9.96 ft | 21 ft | 10.08 ft | - | - | - | - |
Sails
Vivacity 24 - MAINSAIL
| Luff | * 21 ft - (6401 mm) |
|---|---|
| Foot | * 10.08 ft - (3072 mm) |
| Leech | * 22.75 ft - (6934 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 22.97 ft - (7001 mm) |
| Head (inches) | * 4.5 in - (114 mm) |
| Area | * 109.24 ft² |
| Edit in Calculator |
Vivacity 24 - JIBSAIL
| Luff | * 20.79 ft - (6337 mm) |
|---|---|
| Foot | * 13.9 ft - (4237 mm) |
| Leech | * 17.26 ft - (5261 mm) |
| Percentage LP | * 114.96 % |
| Length Perpendicular | * 11.45 ft - (3490 mm) |
| Deck Angle | * 11.98 ° |
| Area | * 119.05 ft² |
| Edit in Calculator |
Vivacity 24 - GENOA
| Luff | * 24.69 ft - (7526 mm) |
|---|---|
| Foot | * 16.7 ft - (5090 mm) |
| Leech | * 22.8 ft - (6949 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 14.94 ft - (4554 mm) |
| Deck Angle | * 4.02 ° |
| Area | * 184.41 ft² |
| Edit in Calculator |
Vivacity 24 - ASYMMETRICAL
| Luff | 25 ft - (7620 mm) |
|---|---|
| Foot | 17 ft - (5182 mm) |
| Leech | 23 ft - (7010 mm) |
| Perc LP | * 165 % |
| Area | * 319 ft² |
| Edit in Calculator |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
