Chesapeake Marine Windward 21
Description
The Windward 21 by Karl A. Stambaugh is a plywood daysailer/cuddy cruiser designed as a modern interpretation of traditional Chesapeake Bay Seaside Bateaux (workboat) forms. It was created by naval architect Karl A. Stambaugh and offered as plans through Chesapeake Marine Design (CMD) for amateur builders. No factory production occurred; it is a plans-only design for stitch-and-glue or similar plywood construction, with an unknown but small number of hulls built by homebuilders since its introduction. The boat emphasizes traditional looks, load-carrying ability, stability, beachability, and simplicity for family daysailing or light overnighting, featuring a large cockpit, small cuddy cabin forward (for dry storage or minimal berths), and a yawl rig (main + mizzen) that aids singlehanded control and balance.
Construction Details
| Designer | Karl A. Stambaugh |
|---|---|
| Builder | Home Built |
| Length | 21.000 ft |
| LOA | 24.000 ft |
| LWL | 21.250 ft |
| Beam | 6.870 ft |
| Displacement | 2200 lb |
| Max Draft | 4.000 ft |
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | 20.33 ft |
| e | 11.50 ft |
| p2 | 13.50 ft |
| e2 | 7.25 ft |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| - | - | 20.33 ft | 11.50 ft | 13.50 ft | 7.25 ft | - | - |
Documents

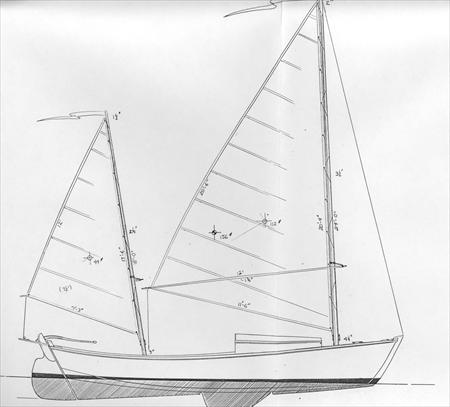

Blueprints
Sails
Chesapeake Marine Windward 21 - MAINSAIL
| Luff | 20.33 ft - (6197 mm) |
|---|---|
| Foot | 11.5 ft - (3505 mm) |
| Leech | * 20.53 ft - (6258 mm) |
| Tack Angle | * 74.46 ° |
| Diagonal | 20.5 ft - (6248 mm) |
| Head (inches) | 3.5 in - (89 mm) |
| Area | * 115.6 ft² |
| Edit in Calculator |
Chesapeake Marine Windward 21 - MIZZEN
| Luff | 13.5 ft - (4115 mm) |
|---|---|
| Foot | 7.25 ft - (2210 mm) |
| Leech-AftHdBd | 12 ft - (3658 mm) |
| Tack Ang | * 62.36 ° |
| Diag (clew/head) | 12 ft - (3658 mm) |
| Area (no Roach) | * 43.35 ft² |
| Edit in Calculator |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
