Chesapeake Marine Design Windward 24 Sail Plan I and II
Description

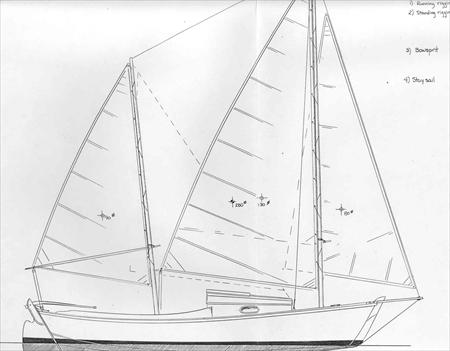

The Windward 24 Sail Plan I and II refers to one of the three optional rig configurations provided in the plans for the Windward 24, a plywood daysailer/camp cruiser designed by Karl A. Stambaugh of Chesapeake Marine Design (CMD). This is a trailerable, shallow-draft pocket cruiser (centerboard) with plywood construction, generous beam for stability, and accommodations for 2+ (berths, galley space). Plans include multiple sail plans to suit builder preferences: Sail Plan I and II are typically a yawl rig (main + mizzen, no headsail or minimal jib in basic setup), offering balanced, easy singlehanded sailing with a traditional aesthetic. (Sail Plan III -- not included here -- is a separate gaff-rigged variant.)
Construction Details
| Designer | Karl A. Stambaugh |
|---|---|
| Builder | Home Built |
| Length | 24.000 ft |
| LOA | 24.000 ft |
| Beam | 8.500 ft |
| Displacement | 4500 lb |
| Max Draft | 3.000 ft |
| Min Draft | 1.330 ft |
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | 23 ft |
| e | 11.25 ft |
| p2 | 16.25 ft |
| e2 | 8.50 ft |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| - | - | 23 ft | 11.25 ft | 16.25 ft | 8.50 ft | - | - |
Documents
Blueprints
Sails
Chesapeake Marine Design Windward 24 Sail Plan I and II - MAINSAIL
| Luff | 23 ft - (7010 mm) |
|---|---|
| Foot | 11.25 ft - (3429 mm) |
| Leech | * 23.75 ft - (7239 mm) |
| Tack Angle | * 79.82 ° |
| Diagonal | 23.75 ft - (7239 mm) |
| Area | * 127.34 ft² |
| Edit in Calculator |
Chesapeake Marine Design Windward 24 Sail Plan I and II - JIBSAIL
| Luff | 18.75 ft - (5715 mm) |
|---|---|
| Foot | 11 ft - (3353 mm) |
| Leech | 14.25 ft - (4343 mm) |
| Area | * 78.07 ft² |
| Edit in Calculator |
Chesapeake Marine Design Windward 24 Sail Plan I and II - MIZZEN
| Luff | 16.25 ft - (4953 mm) |
|---|---|
| Foot | 8.5 ft - (2591 mm) |
| Leech-AftHdBd | 15.96 ft - (4865 mm) |
| Tack Ang | * 72.82 ° |
| Diag (clew/head) | 15.96 ft - (4865 mm) |
| Area (no Roach) | * 65.98 ft² |
| Edit in Calculator |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
