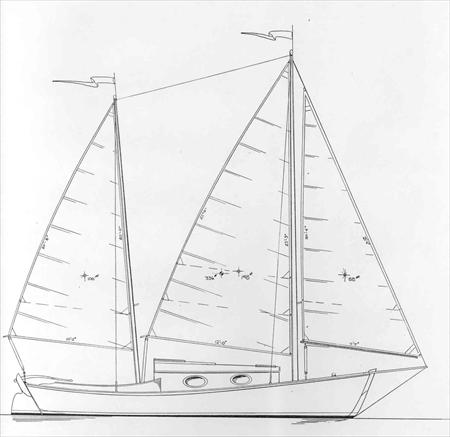

Chesapeake Marine Design Winward 28 Sail Plan 1
Description
The Windward 28 Sail Plan I is one of two sail plans included with the plans for the Windward 28, an extended shallow-draft cruising sailboat designed by Karl A. Stambaugh of Chesapeake Marine Design (CMD). It is a plywood glue-and-screw construction boat intended for amateur builders, with generous cabin accommodations (V-berth, galley, settees, and head space) for thin-water cruising. The hull features a centerboard for beachability and trailering. Sail Plan I is a Bermudan (Marconi) ketch rig (split rig with main and mizzen), which is easy to handle shorthanded and reduces sail area quickly when needed. (Sail Plan II is the other variant, often described as similar or a slight variation; some built examples use a gaff ketch configuration as a custom choice.)
Construction Details
| Designer | Karl A. Stambaugh |
|---|---|
| Builder | Home Built |
| Length | 28.000 ft |
| LOA | 28.000 ft |
| Beam | 8.670 ft |
| Max Draft | 3.500 ft |
| Min Draft | 1.330 ft |
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | 23.75 ft |
| e | 12 ft |
| p2 | 20 ft |
| e2 | 10.17 ft |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| - | - | 23.75 ft | 12 ft | 20 ft | 10.17 ft | - | - |
Documents
Blueprints
Sails
Chesapeake Marine Design Winward 28 Sail Plan 1 - MAINSAIL
| Luff | 23.75 ft - (7239 mm) |
|---|---|
| Foot | 12 ft - (3658 mm) |
| Leech | * 24.93 ft - (7599 mm) |
| Tack Angle | * 81.62 ° |
| Diagonal | 25 ft - (7620 mm) |
| Head (inches) | * 5.25 in - (133 mm) |
| Area | * 146.37 ft² |
| Edit in Calculator |
Chesapeake Marine Design Winward 28 Sail Plan 1 - JIBSAIL
| Luff | 23.5 ft - (7163 mm) |
|---|---|
| Foot | 9.58 ft - (2920 mm) |
| Leech | 20.5 ft - (6248 mm) |
| Area | * 97.68 ft² |
| Edit in Calculator |
Chesapeake Marine Design Winward 28 Sail Plan 1 - MIZZEN
| Luff | 20 ft - (6096 mm) |
|---|---|
| Foot | 10.17 ft - (3100 mm) |
| Leech-AftHdBd | 20.57 ft - (6270 mm) |
| Tack Ang | * 78.91 ° |
| Diag (clew/head) | 20.62 ft - (6285 mm) |
| Head (inches) | * 4.5 in - (114 mm) |
| Area (no Roach) | * 103.63 ft² |
| Edit in Calculator |
