Chesapeake Marine Design Windward 28 Sail Plan II
Description

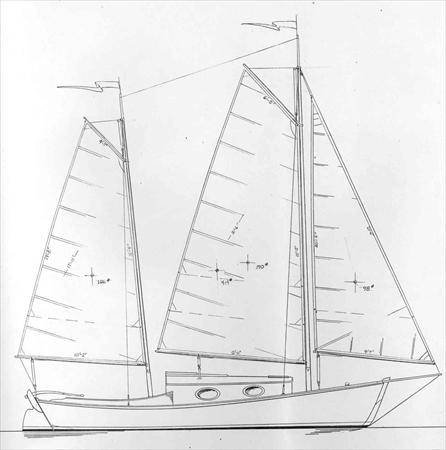

The Windward 28 Sail Plan II (by Karl A. Stambaugh / Chesapeake Marine Design) is the gaff-rigged ketch variant of this extended shallow-draft plywood cruising sailboat. While Sail Plan I uses a Bermudan (Marconi) ketch rig with triangular mainsail and mizzen, Sail Plan II features a traditional gaff mainsail (four-sided) plus a mizzen (typically also gaff or Bermudan in balance) and a jib, giving a classic workboat/ Chesapeake aesthetic with a lower center of effort for better light-air performance and easier handling in a breeze. The Windward 28 is a plans-only design for amateur builders using glue-and-screw plywood construction (½" plywood on bulkheads and straight frames with epoxy). It offers generous accommodations for 4 (V-berth, galley, settees, and head space) in a trailerable, beachable hull suited to thin-water coastal cruising.
Construction Details
| Designer | Karl A. Stambaugh |
|---|---|
| Builder | Home Built |
| Length | 28.000 ft |
| LOA | 28.000 ft |
| Beam | 8.500 ft |
| Displacement | 5200 lb |
| Max Draft | 3.500 ft |
| Min Draft | 1.500 ft |
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| - | - | - | - | - | - | - | - |
Documents
Blueprints
Sails
Chesapeake Marine Design Windward 28 Sail Plan II - JIBSAIL
| Luff | 23.5 ft - (7163 mm) |
|---|---|
| Foot | 9.58 ft - (2920 mm) |
| Leech | 20.5 ft - (6248 mm) |
| Length Perpendicular | 8.31 ft - (2533 mm) |
| Area | * 97.68 ft² |
| Edit in Calculator |
Chesapeake Marine Design Windward 28 Sail Plan II - GAFF MAIN
| Luff | 19 ft - (5791 mm) |
|---|---|
| Foot | 12 ft - (3658 mm) |
| Leech | 23 ft - (7010 mm) |
| Tack Angle | * 84.62 ° |
| Diag (clew/throat) | 21.5 ft - (6553 mm) |
| Head | 6.42 ft - (1957 mm) |
| Area | * 182.22 ft² |
| Edit in Calculator |
Chesapeake Marine Design Windward 28 Sail Plan II - GAFF MIZZEN
| Luff | 16.33 ft - (4977 mm) |
|---|---|
| Foot | 10.17 ft - (3100 mm) |
| Leech | 22.21 ft - (6770 mm) |
| Head | * 102.62 ft - (31279 mm) |
| Diag (clew/throat) | 21.04 ft - (6413 mm) |
| Tack Angle | 4.6 ° |
| Area | * 128.86 ft² |
| Edit in Calculator |
