Winter Hawk Sprit Rig
Description
The Winter Hawk (also spelled Winterhawk) is a 15-foot plywood daysailer designed by Ken Swan. It is offered as plans for amateur builders, with a focus on simple, traditional construction using plywood panels (ply panel sides and bottom) and basic framing. No series production occurred; it is a homebuilt design with an unknown but modest number of hulls completed, popular among wooden boat enthusiasts for its classic lines and ease of building. The boat emphasizes affordable, lightweight construction suitable for protected or coastal waters, with options for different rigs including a sprit rig variant.
Construction Details
| Designer | Ken Swan |
|---|---|
| Builder | Home Built |
| Length | 15.300 ft |
| LOA | 15.300 ft |
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| - | - | - | - | - | - | - | - |
Sails

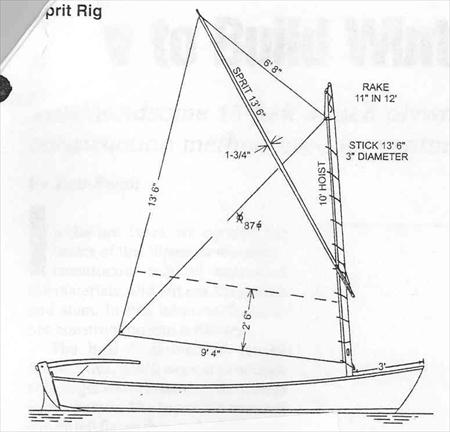

Winter Hawk Sprit Rig - SPRIT
| Luff | 10 ft - (3048 mm) |
|---|---|
| Foot | 9.33 ft - (2844 mm) |
| Leech | 13.5 ft - (4115 mm) |
| Tack Angle | * 79.18 ° |
| Diag (clew/throat) | 12.33 ft - (3758 mm) |
| Head | 6.67 ft - (2033 mm) |
| Area | * 86.79 ft² |
| Edit in Calculator |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
