Winter Wren
Description

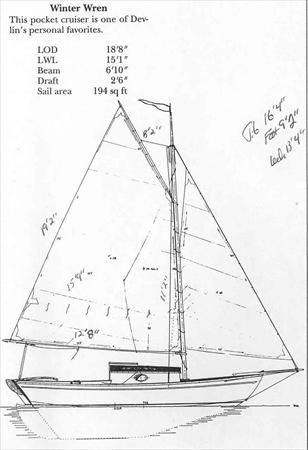

The Winter Wren (also known as the Winter Wren 19 or Winter Wren 19 Full Keel) is a compact, trailerable pocket cruiser designed by Sam Devlin of Devlin Designing Boat Builders. It is offered as plans (and sometimes kits) for amateur builders using stitch-and-glue plywood construction with fiberglass/epoxy sheathing. The original Winter Wren features a full keel and gaff rig (cutter or sloop configuration), while the later Winter Wren II variant uses a daggerboard for shallower draft and a Bermudan (Marconi) sloop rig. Both versions emphasize elegance, simplicity, and seaworthiness in a small package ideal for a cruising couple—offering basic accommodations (berths, galley space) while remaining easy to trailer and launch. Production is plans-based rather than factory series; an unknown but moderate number of hulls have been built by homebuilders, with examples praised for responsive handling and capability in coastal or protected waters. The original Winter Wren (this boat) is a gaff-rigged cutter/sloop with traditional four-sided mainsail. The Winter Wren II uses a Bermudan sloop rig (mast steps on cabin top for easy raising/lowering).
Construction Details
| Designer | Sam Devlin |
|---|---|
| Builder | Home Built |
| Length | 18.670 ft |
| LOA | 22.580 ft |
| LWL | 15.170 ft |
| Beam | 7.080 ft |
| Displacement | 1800 lb |
| Ballast | 685 lb |
| Max Draft | 2.500 ft |
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| - | - | - | - | - | - | - | - |
Documents
Sails
Winter Wren - JIBSAIL
| Luff | 16.33 ft - (4977 mm) |
|---|---|
| Foot | 9.16 ft - (2792 mm) |
| Leech | 13.33 ft - (4063 mm) |
| Length Perpendicular | 7.33 ft - (2234 mm) |
| Area | * 61.04 ft² |
| Edit in Calculator |
Winter Wren - GAFF MAIN
| Luff | 11.17 ft - (3405 mm) |
|---|---|
| Foot | 12.67 ft - (3862 mm) |
| Leech | 19.17 ft - (5843 mm) |
| Tack Angle | * 82.44 ° |
| Diag (clew/throat) | 15.75 ft - (4801 mm) |
| Head | 8.17 ft - (2490 mm) |
| Area | * 133.13 ft² |
| Edit in Calculator |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
