Wylie 34
Description

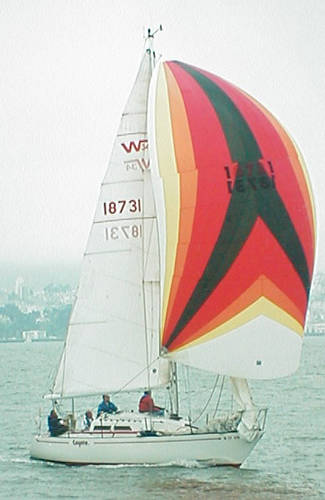

The Wylie 34 (also known as the Wylie 34 by Tom Wylie or Wylie Design Team) is a performance-oriented racer/cruiser designed by Tom Wylie in the late 1970s. It was built in limited numbers (approximately 16 hulls) by North Coast Yachts (Watsonville, California) in fiberglass with a fin keel and spade rudder. The design emphasizes a lightweight, responsive hull with good all-around sailing qualities—competitive in bay and coastal racing while remaining suitable for weekend cruising or short passages. It reflects Tom Wylie's philosophy of efficient, fun-to-sail boats with a generous sail plan that excels in light air.
Construction Details
| Designer | Wylie Design Team |
|---|---|
| Builder | North Coast Yachts (Watsonville, California) |
| Length | 33.750 ft |
| LOA | 33.750 ft |
| LWL | 25.750 ft |
| Beam | 10.830 ft |
| Displacement | 8100 lb |
| Ballast | 3235 lb |
| Max Draft | 6.000 ft |
| Year Built | 1978 |
The standard boat dimensions
| i | 38 ft |
|---|---|
| j | 11.67 ft |
| p | 41 ft |
| e | 13.75 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 38 ft | 11.67 ft | 41 ft | 13.75 ft | - | - | - | - |
Documents
Sails
Wylie 34 - MAINSAIL
| Luff | * 41 ft - (12497 mm) |
|---|---|
| Foot | * 13.75 ft - (4191 mm) |
| Leech | * 42.38 ft - (12917 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 42.79 ft - (13042 mm) |
| Head (inches) | * 6 in - (152 mm) |
| Area | * 287.8 ft² |
| Edit in Calculator |
Wylie 34 - JIBSAIL
| Luff | * 31.8 ft - (9693 mm) |
|---|---|
| Foot | * 15.36 ft - (4682 mm) |
| Leech | * 27.78 ft - (8467 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 13.42 ft - (4090 mm) |
| Deck Angle | * 12.05 ° |
| Area | * 213.35 ft² |
| Edit in Calculator |
Wylie 34 - GENOA
| Luff | * 37.76 ft - (11509 mm) |
|---|---|
| Foot | * 18.75 ft - (5715 mm) |
| Leech | * 35.62 ft - (10857 mm) |
| Percentage LP | * 149.96 % |
| Length Perpendicular | * 17.5 ft - (5334 mm) |
| Deck Angle | * 3.98 ° |
| Area | * 330.38 ft² |
| Edit in Calculator |
Wylie 34 - ASYMMETRICAL
| Luff | * 37.76 ft - (11509 mm) |
|---|---|
| Foot | * 19.26 ft - (5870 mm) |
| Leech | * 34.74 ft - (10589 mm) |
| Perc LP | * 165 % |
| Area | * 545 ft² |
| Edit in Calculator |
Wylie 34 - SPINNAKER
| Stays | * 37.76 ft - (11509 mm) |
|---|---|
| MidGirth | * 21.01 ft - (6404 mm) |
| Foot | * 21.01 ft - (6404 mm) |
| Perc LP | * 180 % |
| Area | * 674 ft² |
| Edit in Calculator |
Wylie 34 - STORMJIB
| Luff | * 21.86 ft - (6663 mm) |
|---|---|
| Foot | * 8.66 ft - (2640 mm) |
| Leech | * 18.16 ft - (5535 mm) |
| Perc LP | * 59.98 % |
| Length Perp | * 7 ft - (2134 mm) |
| Deck Angle | * 19.03 ° |
| Area | * 76.48 ft² |
| Edit in Calculator |
Wylie 34 - STORMTRYSAIL
| Luff | * 15.36 ft - (4682 mm) |
|---|---|
| Foot | * 14.12 ft - (4304 mm) |
| Leech | * 12.8 ft - (3901 mm) |
| Length Perp | * 12.8 ft - (3901 mm) |
| Tack Angle | * -25 ° |
| Area | * 85 ft² |
| Edit in Calculator |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
