Yorktown 35
Description
The Yorktown 35 is a classic American fiberglass sailboat from the mid-1970s (first built 1974), designed by Hank McCune (also associated with the Yorktown 33 you asked about previously) and built by Yorktown Marine Corp. (Yorktown Yachts) in Wilmington, California. Like many boats from the era, it was often sold as a kit boat (hull, deck, and major components provided), with owners completing the interior, systems, rigging, and fit-out. This resulted in significant variation in final quality, layout, and weight — some examples were professionally finished or heavily reinforced by skilled owners, while others reflect amateur work. Several versions existed, including flush-deck and center-cockpit models. It was marketed as an affordable, spacious cruiser suitable for coastal or occasional offshore use, with a focus on roomy accommodations and stability.
Construction Details
| Designer | Hank McCune |
|---|---|
| Builder | Yorktown Boat Co. (U.S.A.) |
| Length | 35.000 ft |
| LOA | 35.000 ft |
| LWL | 30.000 ft |
| Beam | 11.500 ft |
| Displacement | 16000 lb |
| Ballast | 7000 lb |
| Max Draft | 6.000 ft |
| Year Built | 1974 |

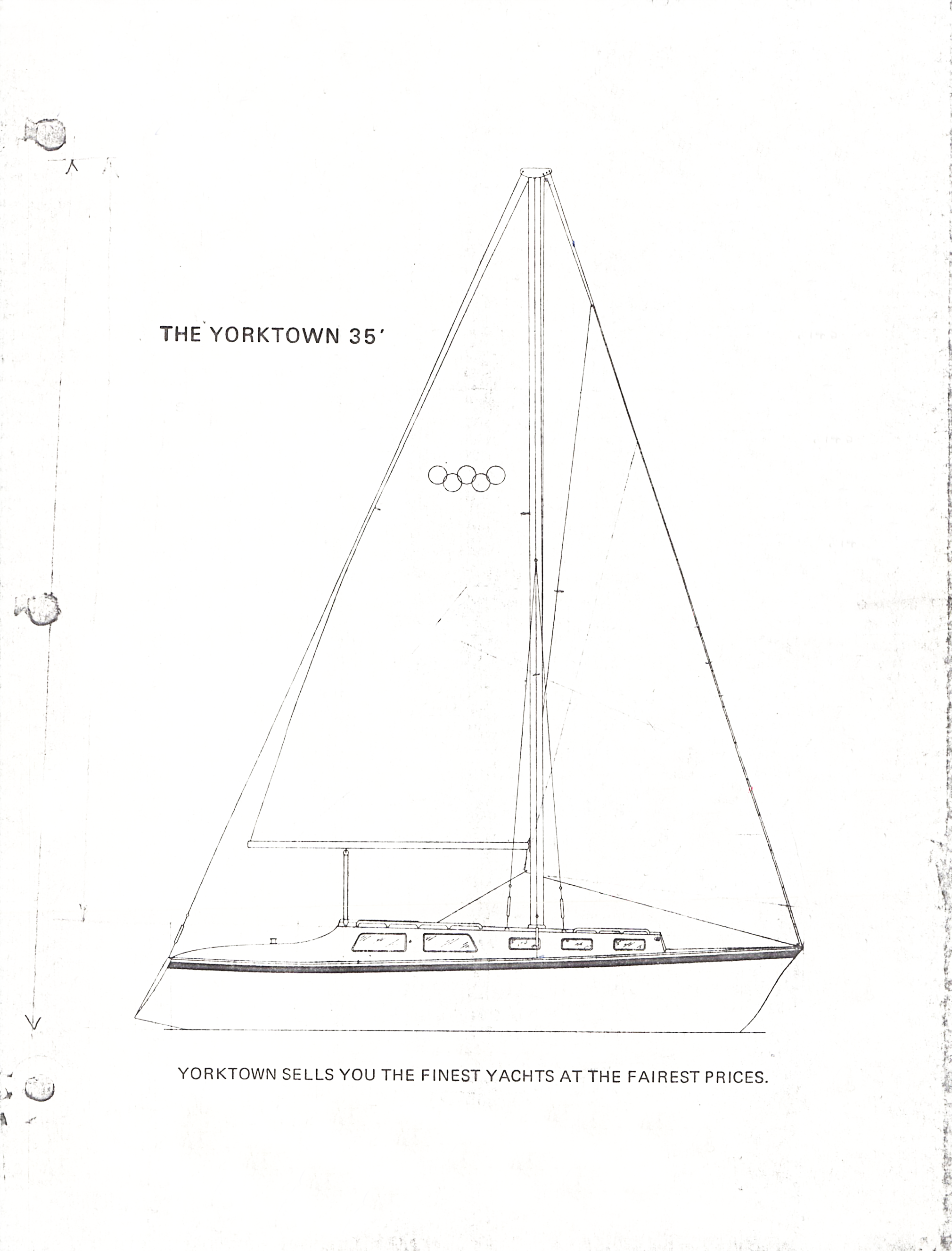

The standard boat dimensions
| i | 38.27 ft |
|---|---|
| j | 13 ft |
| p | 34.50 ft |
| e | 14.50 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 38.27 ft | 13 ft | 34.50 ft | 14.50 ft | - | - | - | - |
Documents
Sails
Yorktown 35 - MAINSAIL
| Luff | 34.5 ft - (10516 mm) |
|---|---|
| Foot | 14.5 ft - (4420 mm) |
| Leech | * 36.68 ft - (11180 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 36.95 ft - (11262 mm) |
| Head (inches) | * 6 in - (152 mm) |
| Area | * 257.72 ft² |
| Edit in Calculator |
Yorktown 35 - JIBSAIL
| Luff | 36 ft - (10973 mm) |
|---|---|
| Foot | 16.5 ft - (5029 mm) |
| Leech | 33 ft - (10058 mm) |
| Area | * 271.76 ft² |
| Edit in Calculator |
Yorktown 35 - GENOA
| Luff | 38.5 ft - (11735 mm) |
|---|---|
| Foot | 21.5 ft - (6553 mm) |
| Leech | 36.5 ft - (11125 mm) |
| Area | * 384.53 ft² |
| Edit in Calculator |
Yorktown 35 - ASYMMETRICAL
| Luff | * 38.4 ft - (11704 mm) |
|---|---|
| Foot | * 21.45 ft - (6538 mm) |
| Leech | * 35.33 ft - (10769 mm) |
| Perc LP | * 165 % |
| Area | * 618 ft² |
| Edit in Calculator |
Yorktown 35 - SPINNAKER
| Stays | * 38.4 ft - (11704 mm) |
|---|---|
| MidGirth | * 23.4 ft - (7132 mm) |
| Foot | * 23.4 ft - (7132 mm) |
| Perc LP | * 180 % |
| Area | * 764 ft² |
| Edit in Calculator |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
